High-Tech Wakesurfer 222XE
Description
Exciting Watersports to Relaxed Lounging
The 222XE lets you do it all, from exhilarating surfing and tubing to relaxing, entertaining, and lounging.

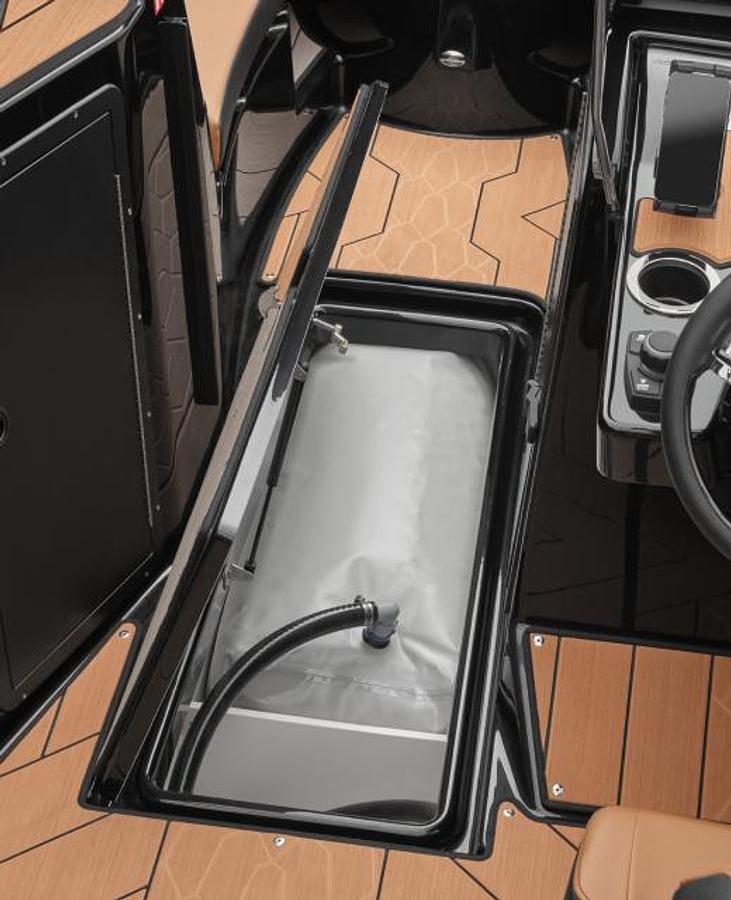

Factory-Installed Ballast System
The 222XE comes equipped with a 1,100 lbs triple ballast system, an oversized billet aluminum rear view mirror, and a premium sound system specifically designed to enhance your towing experience

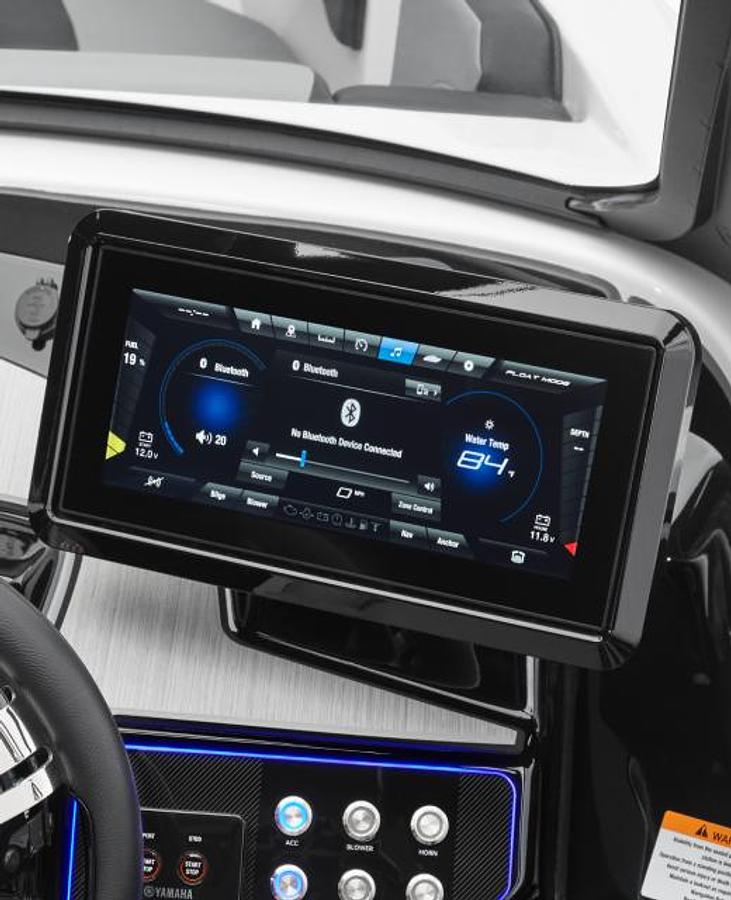

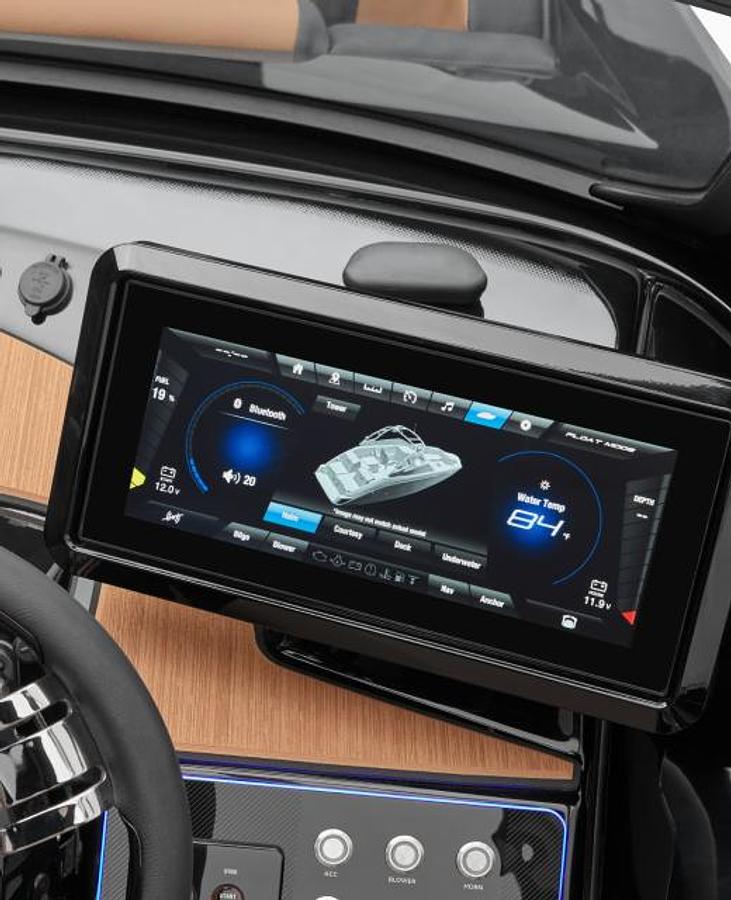

12.3'' Connext® Touchscreen
The 222XE features a cutting-edge Connext touchscreen, the largest that Yamaha offers, seamlessly integrated into its minimalistic, floating helm design.

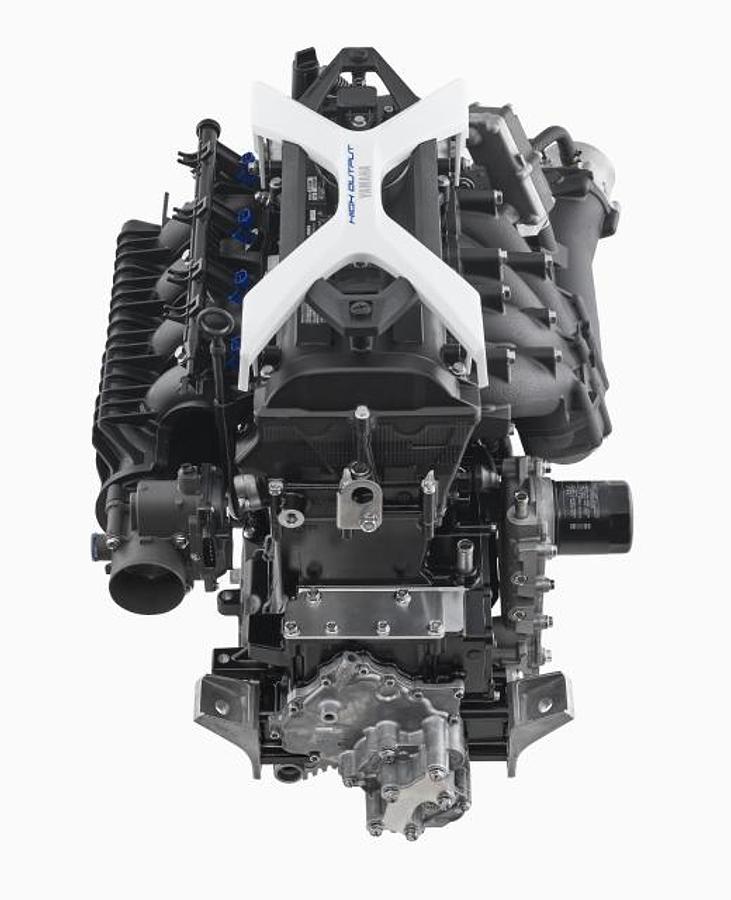

Yamaha 1.9L HO Marine Engines
Equipped with the largest displacement engines in a jet boat today, these twin 1898cc Yamaha marine engines deliver quick and smooth acceleration and class-leading top speeds.

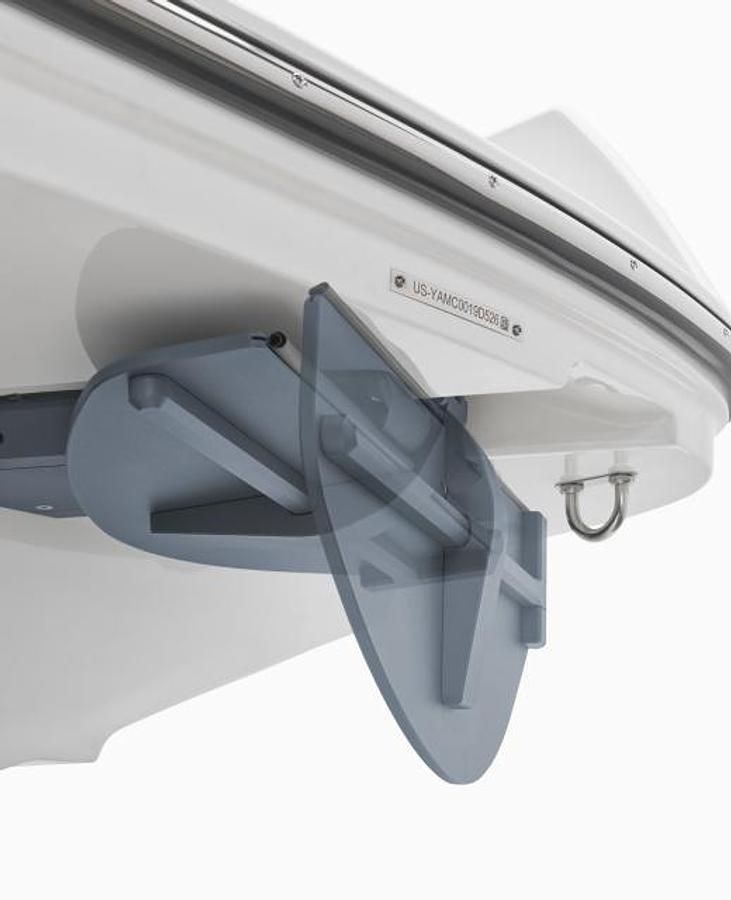

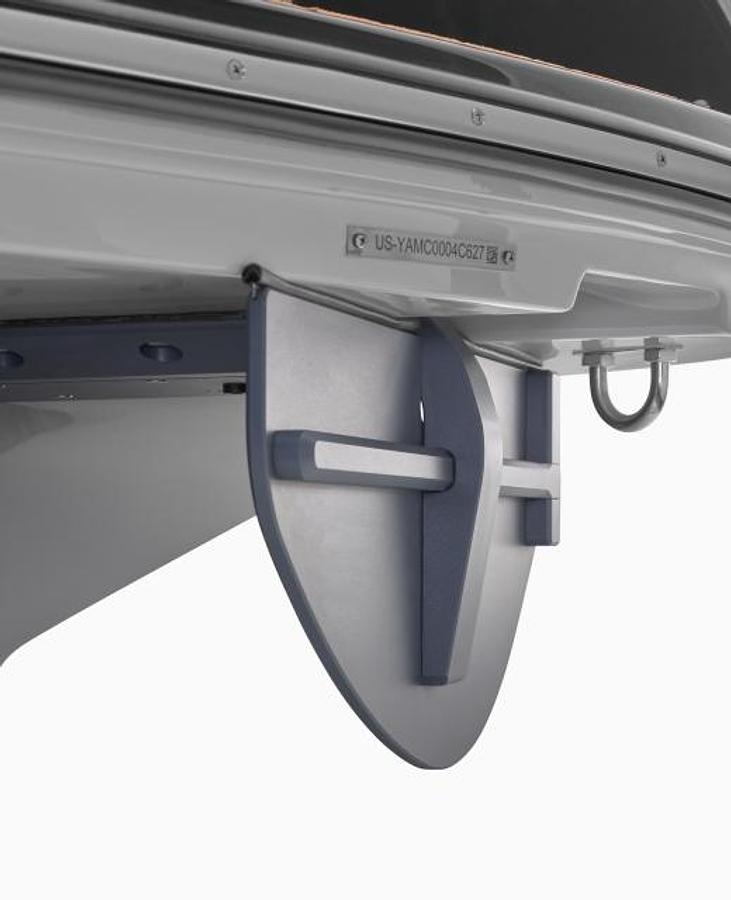

Integrated WakeBooster®
With the push of a button on the Connext® Touchscreen, the integrated WakeBoosters® can be deployed on either side of the boat, creating adrenaline-pumping wakes for wakesurfing.

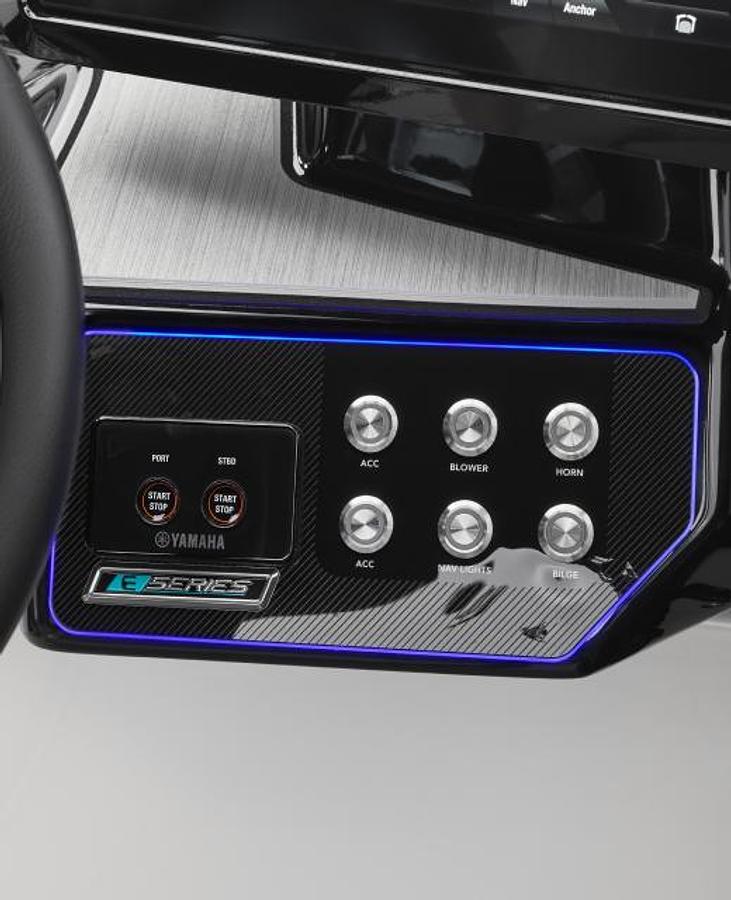

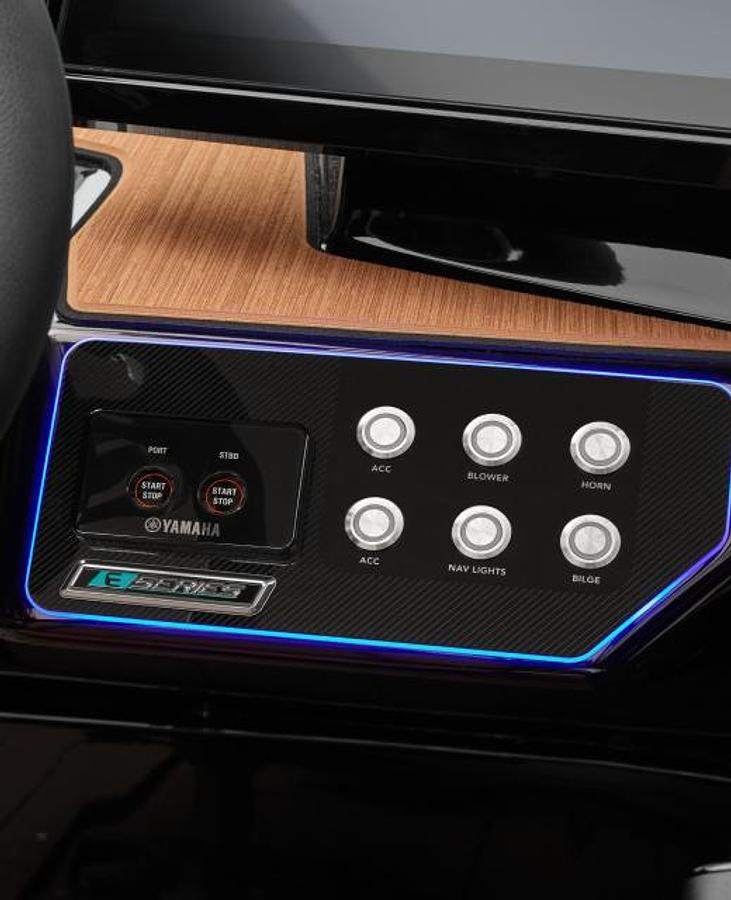

E-Series® Throttle Control
Equipped with advanced Electronic Throttle Control, the system includes push button start/stop, RPM engine sync, and single throttle lever pairing.

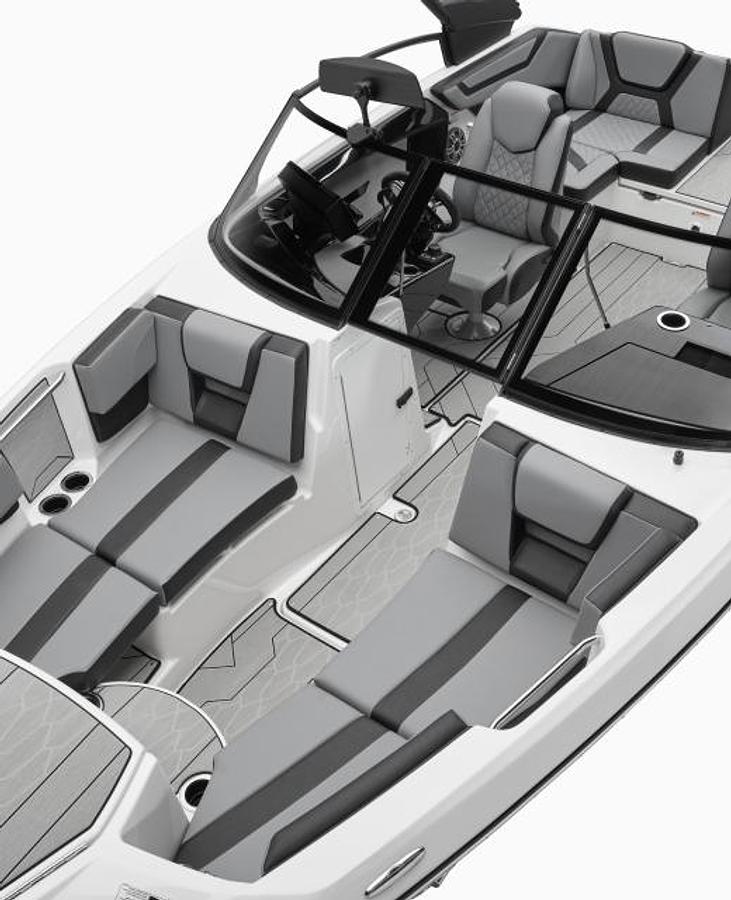

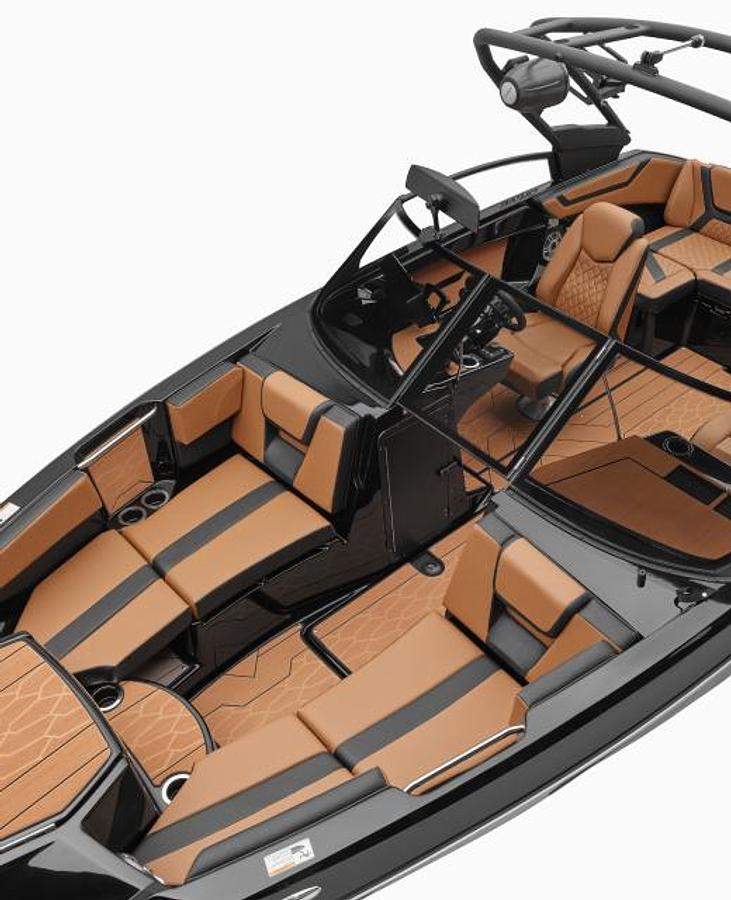

Spacious Interior
The 22-foot platform features a spacious interior with large bow and cockpit areas, creating a significantly roomier and more comfortable riding experience that feels much larger than its actual size.
The Wake Series in
Action
See the Wake Series in Action
Wake Series
READY TO DO EVEN MORE ON THE WATER?
SLINGSHOT® COASTER WAKESURF BOARD 2.0
$791.99
Redesigned! This custom, co-branded and co-developed wakesurf board was specifically
designed to work with Yamaha wake boats. The generous nose rocker minimizes the chances of catching the front of the board, while sharper edge rails provide for a nimble ride. Available in 5'0" and 5.3".
Find a Dealer
YAMAHA FLOATING ISLAND
$206.99
6 person floating island with a valve for easy inflating and deflating.
Find a Dealer
INFLATABLE PADDLE BOARD
$939.99
This 11' 6" Yamaha branded inflatable paddleboard kit features a 6" premium drop stitch construction. Kit includes board, pump, paddle, and storage case.
Find a Dealer
Specifications
| Condition | New |
| Length | 22' |
| Dry Weight (lbs) | 4059 |
| Weight (lbs) | 4059 |
| Beam | 8'6" |
| Draft | 21.3" |
| Dead Rise | 20' |
| In-Water Height (Bridge Clearance) | 7'7" |
| Fuel Tank Capacity (gal) | 70 Gal |
| Seating Capacity (people) | 10 |
| Weight Capacity (lbs) | 2050 |
| Storage Capacity (gal) | 502 |
| Height on Trailer | 11' 0'' |
| Height on Trailer with Tower Folded | 9' 11'' |
| Length on Trailer | 24' 0'' |
| Length on Trailer with Tongue Folded | 22'6" |
| Yamaha Marine Engine | Twin 4-cylinder, 4-stroke, 1.9 Liter High Output Yamaha Marine Engines |
| BoatWaterCapacityshowersink | No |
| Water Tank Capacity (gal) | No |
| Snap-In Custom Cut Marine-Grade Mat | ✓ |
| Ski Locker | ✓ |
| Removable Dinette Table with Pedestal | No |
| Bow Filler Inserts for Multiple Seating Configurations | ✓ |
| Tilt Steering | ✓ |
| Upgraded Steering Wheel | ✓ |
| Upgraded Upholstery | ✓ |
| Hinged Seat Cushions | ✓ |
| Passenger-side Captain's Chair | ✓ |
| Cool Comfort Vinyl Upholstery | ✓ |
| Portside Entertainment Area | ✓ |
| Adjustable Captain's chair with Flip-Up Bolster | ✓ |
| Walk-through Bow Door | ✓ |
| Lockable Passenger Side Glove Box | ✓ |
| Integrated Removable Cooler | ✓ |
| Docking Lights | ✓ |
| Courtesy Deck Lighting | ✓ |
| Dedicated Anchor and Rope Locker | ✓ |
| Courtesy Tower Lighting | ✓ |
| Upgraded Aluminum Handles & Accents | ✓ |
| Cockpit Drainage System (CDS) | ✓ |
| Bow Reboarding Ladder | ✓ |
| LED Accent Lighting | ✓ |
| Integrated Swim Platform | ✓ |
| Upholstered Cushioned Seats | ✓ |
| Upholstered Cushioned Backrests | Yes |
| 12-volt Outlet | ✓ |
| Stainless Steel Telescopic Reboarding Ladder | ✓ |
| Dinette Table Mount | ✓ |
| Stern (Wet) Storage | ✓ |
| Custom Cut Marine-Grade Mat | ✓ |
| Disk Brakes | Yes |
| Freshwater Shower | No |
| Marine Stereo | Yes |
| Underwater Light | Yes |
| Marine-Grade Mat | Yes |
| Stern Filler Cushions | No |
| Swim-up Seat Accessory Included | No |
| Integrated Swim-up Seat | No |
| Yamaha E-Series Features | ✓ |
| Helm Connext Screen (in) | 12.3 |
| MFD w/ Maps | ✓ |
| Wireless Charging Points | Yes |
| Drive-By-Wire Technology | ✓ |
| Helm Switch Panels | Blue LED Lit |
| Tower Speakers | 2 |
| Marine Speakers | 7 |
| Stern Stereo Remote | ✓ |
| Stern Speakers | ✓ |
| 3 position "No Wake Mode™" Control | ✓ |
| Cruise Assist | ✓ |
| Rack & Pinion Steering | ✓ |
| Battery Setup | Dual |
| Toe-in Jet Nozzle Position | ✓ |
| Integrated Ballast System | ✓ |
| Quiet Cruise Technology | ✓ |
| Integrated Electric WakeBooster | ✓ |
| Articulating Keel System | ✓ |
| Boat Wellness Function Display | Yes |
| Connext Screen (in) | 12.3" Display with Maps & Joystick |
| Connext with Touchscreen | 12.3" display w/ maps & joystick |
| Depth Finder | Yes |
| Drive Control | Yes |
| Electronic Speedometer | Yes |
| Enclosed Head Compartment | N/A |
| Helm Master EX | No |
| Recommended Fuel | Unleaded Gasoline (Minimum Pump Octane 87) |
| Helm Master™ | No |
| DRiVE | No |
| DRiVE X | No |
| Displacement | 3796CC |
| Pump Clean-out Ports | ✓ |
| Oil Capacity per Engine (L) | 3.7 |
| Tow Hook | ✓ |
| Stainless Steel Pop-Up Cleats | 6 |
| 155 MM High-Pressure Pump | ✓ |
| Wakeboard Racks | ✓ |
| Windshield Mirror | ✓ |
| Bow Rails | ✓ |
| Fuel Management System | Yes |
| BiminiTM Top | ✓ |
| Aluminum Folding Wakeboard Tower with Tow Hook | ✓ |
| Color | Dolphin Gray / White |
| Hard Top with Panoramic Tinted Skylights | No |
| Head Compartment | N/A |
| Premium Windshield Frame | No |
| Spare Tire and Mount | ✓ |
| Painted Trailer with Swing-away Tongue | ✓ |
| Stainless Steel Bow Rails | Yes |
| Stainless Steel Cleats | 6 Pop-up |
| Galvanized Trailer with Swing-away Tongue | Tandem Axle Optional |
| Hard Top | No |
| Dry Weight on Trailer (lbs) | 5272 |
| Lights | Yes |
