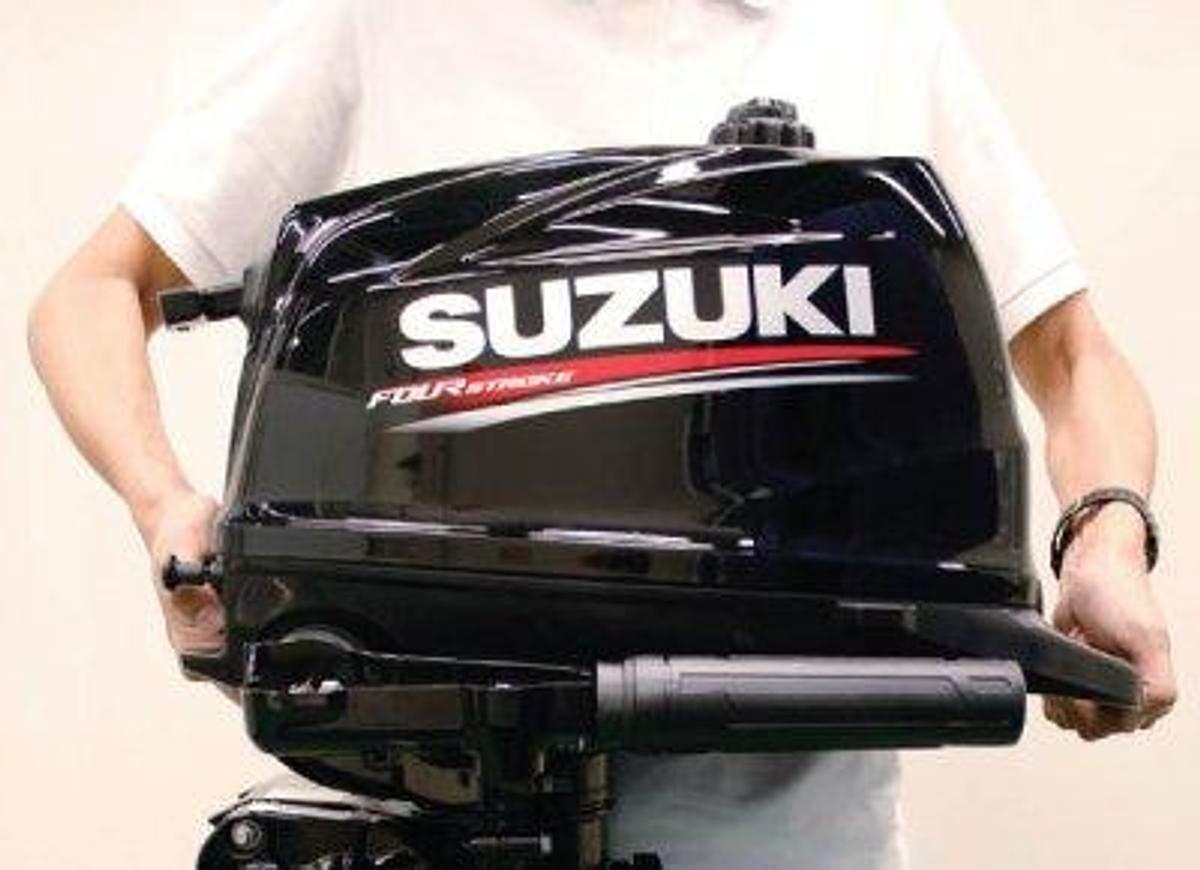

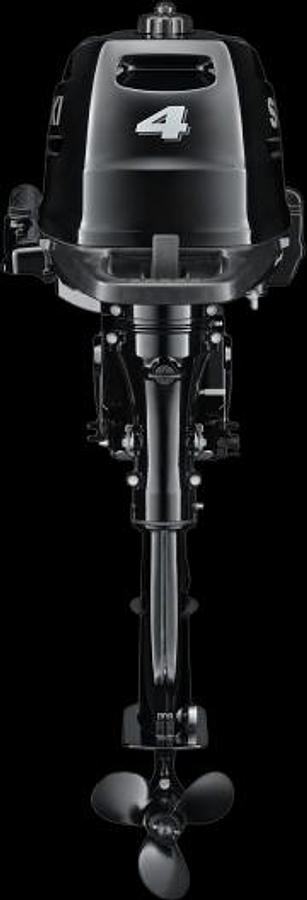

DF4A
Description
Go further than ever before.

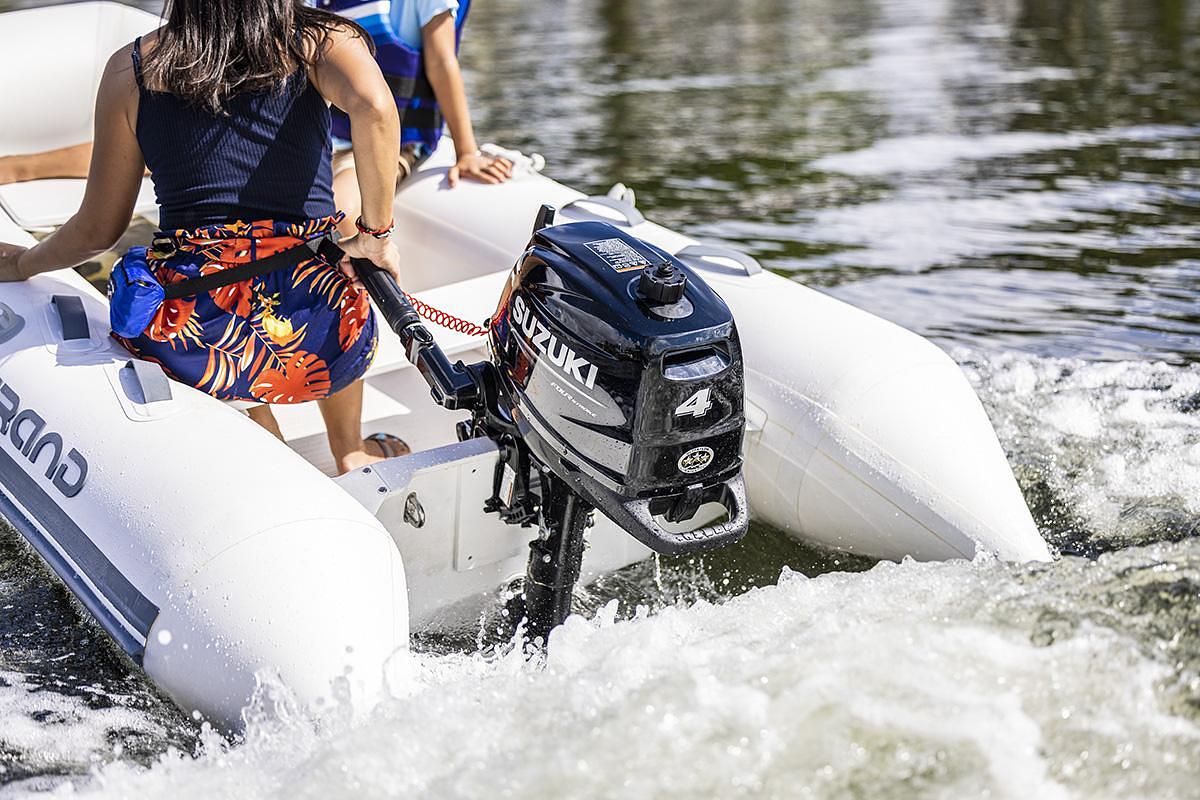

Bring four-stroke performance and efficiency to your portable outboard with the DF4A. Compact and lightweight, the DF4A makes for easy transport with surprisingly low- and mid-range torque, but also quick acceleration.
See Product Brochure here.
See Quick Start Guide
Make speed a priority.
The DF4A offers acceleration and speeds far beyond the average capability of most small watercrafts, and can be attached or removed with ease. Bring a little power to your weekend plans, and upgrade your ride.
Don’t be held down.
The DF4A is fully equipped for whatever challenges lie ahead, fully portable and fits nearly any water vessel. Swap out how you use your DF4A, whether it’s for a weekend on the duck boat or the paddle board. If you don’t want to be tied down, this is the engine for you.
Specifications
| Manufacturer | Suzuki |
| Condition | New |
| Body Color | Pearl Nebular Black |
| Recommended Transom Height (inches) | S: 15 |
| Starting System | Manual |
| Weight LBS | S: 55 |
| Engine Type | OHV 2-Valve |
| Fuel Delivery System | Carburetor |
| No. Of Cylinders | 1 |
| Piston Displacement inches (cc) | 8.4 (138) |
| Bore X Stroke Inches (mm) | 2.44 x 1.81 (62 x 46) |
| Maximum Output HP | 4 |
| Operating Range (RPM) | 4000 - 5000 |
| Steering | Tiller |
| Choke | Manual |
| Oil Pan Capacity quarts (liter) | .74 (.7) |
| Ignition System | Digital CDI |
| System Output | 12V 6A |
| Trim Position | 5 Tilt Pin Positions |
| Gear Ratio | 1.92:1 |
| Standard Propeller | 3 x 7.5 x 6.5 |
| Propeller Selection | 6 - 7 |
