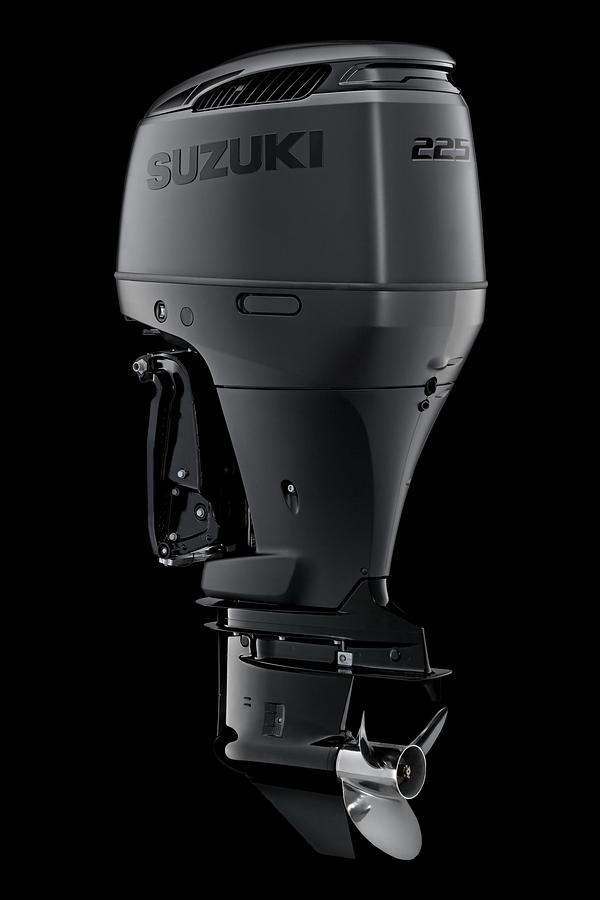

DF225 STEALTH
Description
Proven and Reliable.
The new STEALTH DF225T is a 3.6L V-6 engine with mechanical controls, compatible with Suzuki’s CAN Bus for features like auto trim, keyless start, and troll mode. It includes dual overhead cams, 24 valves, variable valve timing, multi-stage induction, and enhanced cowling for improved performance and efficiency.
Bold and powerful.
The DF225 is capable of producing approximately 38 Amps of power, ensuring reliable operation for your vessel even at engine speeds as low as 1,000 rpm. This output is sufficient to meet all onboard electrical requirements under various conditions.
Specifications
| Manufacturer | Suzuki |
| Condition | New |
| Body Color | Matte Black |
| Recommended Transom Height (inches) | X:20 |
| Starting System | Electric |
| Weight LBS | X:606 |
| Engine Type | DOHC 24-Valve |
| Fuel Delivery System | Multi Point Sequential Electronic Fuel Injection |
| No. Of Cylinders | V6 (55°) |
| Piston Displacement inches (cc) | 220.5 (3614) |
| Bore X Stroke Inches (mm) | 3.74 x 3.35 (95 x 85) |
| Maximum Output HP | 225 |
| Operating Range (RPM) | 5000-6000 |
| Steering | Remote |
| Choke | N/A |
| Oil Pan Capacity quarts (liter) | 8.5 (8.0) |
| Ignition System | Solid State Direct Ignition |
| System Output | 12V 54A |
| Trim Position | Power Trim and Tilt |
| Gear Ratio | 2.29:1 |
| Standard Propeller | Optional See Dealer |
| Propeller Selection | 17 - 27.5 |
