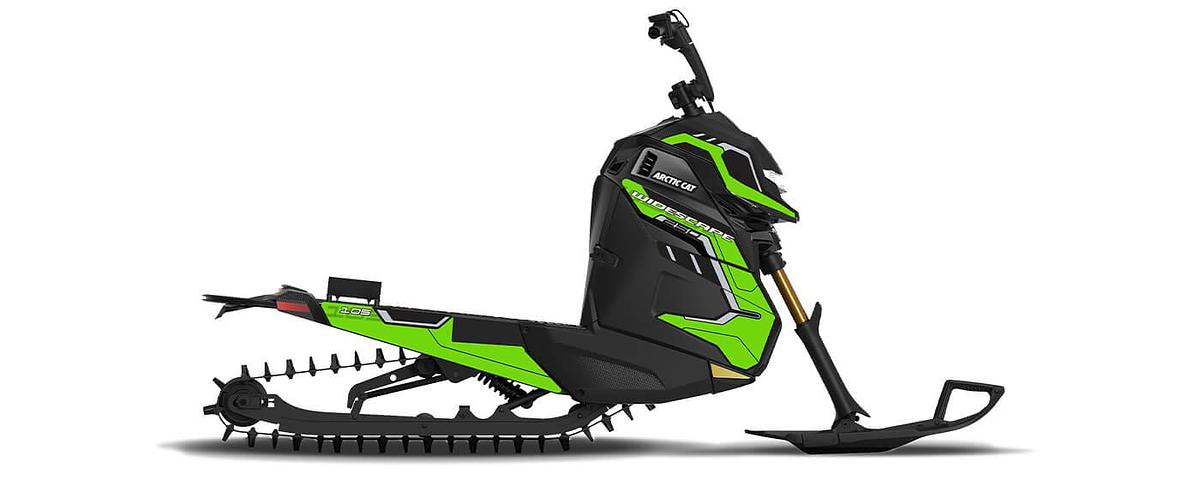

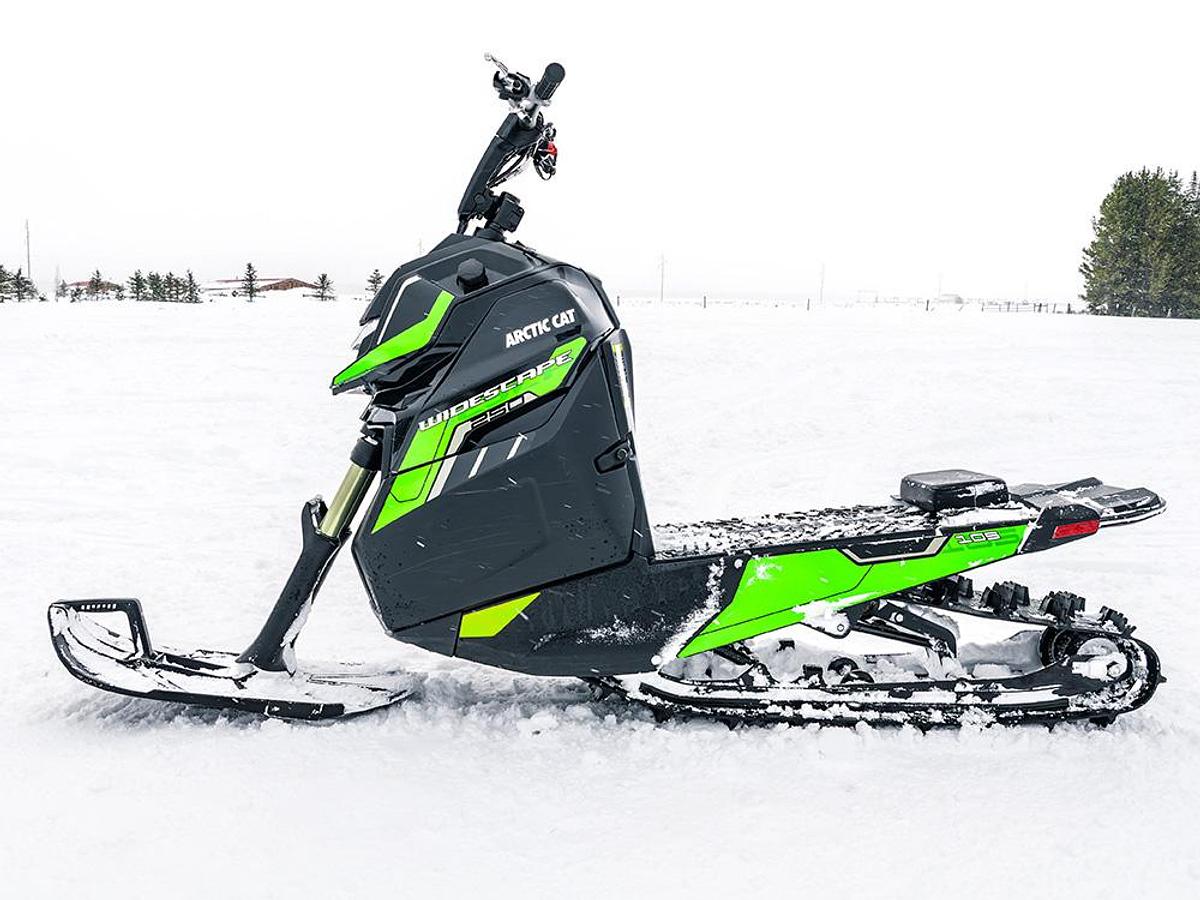

Arctic Cat Widescape WS 250

Specifications

ManufacturerArctic Cat
ModelWidescape WS 250
ConditionNew

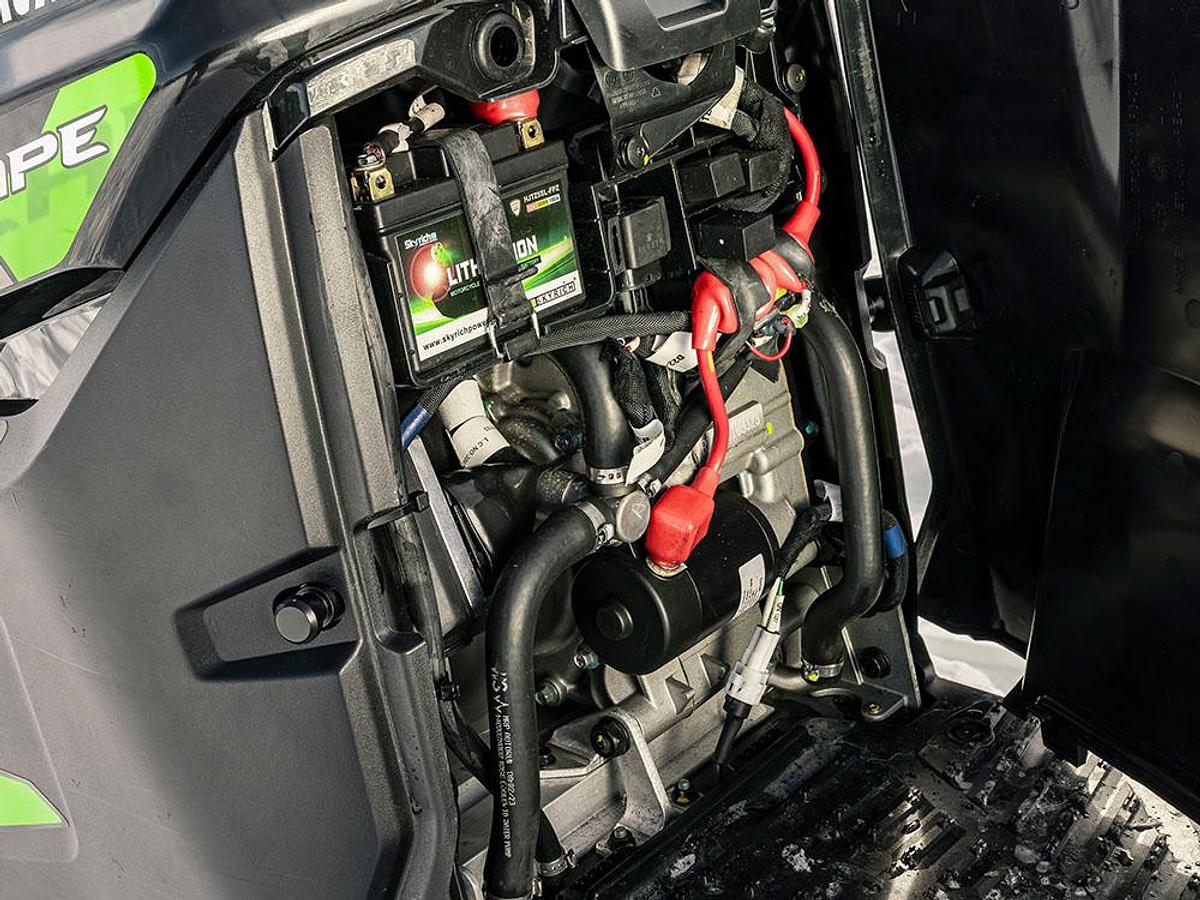

Engine TypeLiquid-cooled, four-stroke
Displacement242 cc
CoolingNA
Cylinders1
Bore x Stroke71 mm x 61 mm (2.79 in. x 2.40 in)
LubricationNA
IgnitionElectric
Engine Stator OutputNA
Fuel DeliveryEFI
ExhaustNA
Fuel Capacity2.11 US gal. (8 L)
Oil System CapacityNA
Coolant System CapacityNA
Minimum OctanePremium unleaded recommended / 86
Drive ClutchCVTech®
Driven ClutchNA
Drive SystemNA
BrakesJ.Juan® floating caliper system
Clutch CalibrationNA
GearingNA
Chain PitchNA
Track Drive SprocketNA
ReverseNA
Front SuspensionWidescape® Design / 140 mm (5.51 in) travel
Ski ShocksNA
Sway BarNA
Front Travel 5.51 in
Rear SuspensionWidescape® Design / 100 mm (3.93 in) travel
Front Track ShockNA
Rear Track ShockNA
Rear Travel3.93 in
Overall Chassis Length2,200 mm (86.4 in)
Overall Chassis Width800 mm (31.44 in)
Overall Chassis Height1,300 mm (51.12 in)

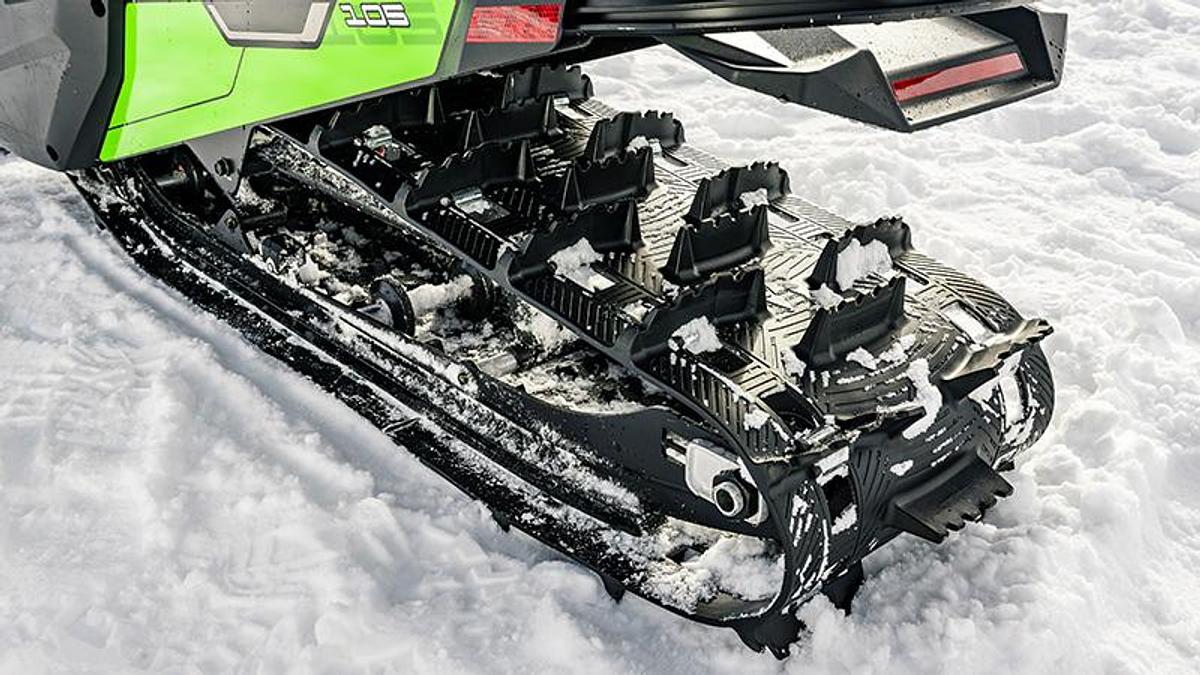

Track TypeCustom designed scaled track made by Soucy®
Track Width305 mm (12 in)
Track Length2,667 mm (105 in)
Lug38 mm (1.5 in)
PitchNA
Ski Stance305 mm (12 In)

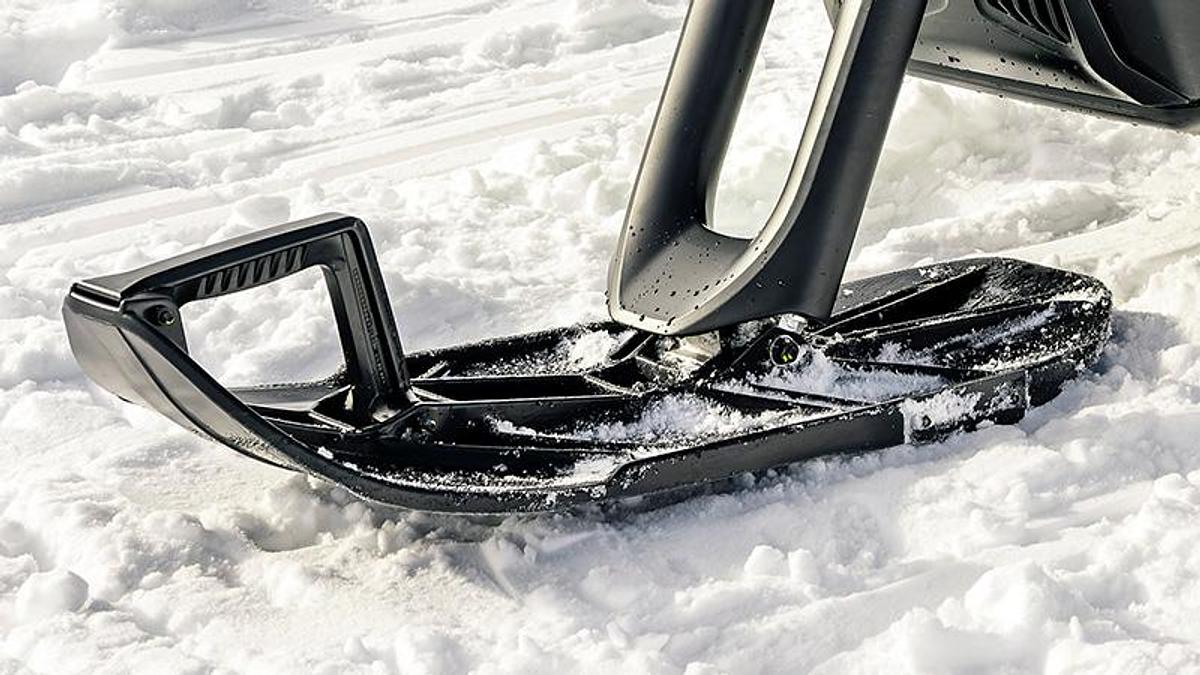

Ski Type/WidthUHMW material with single keel and dual-sided metal lips / 305 mm (12 in)
Runner TypeNA

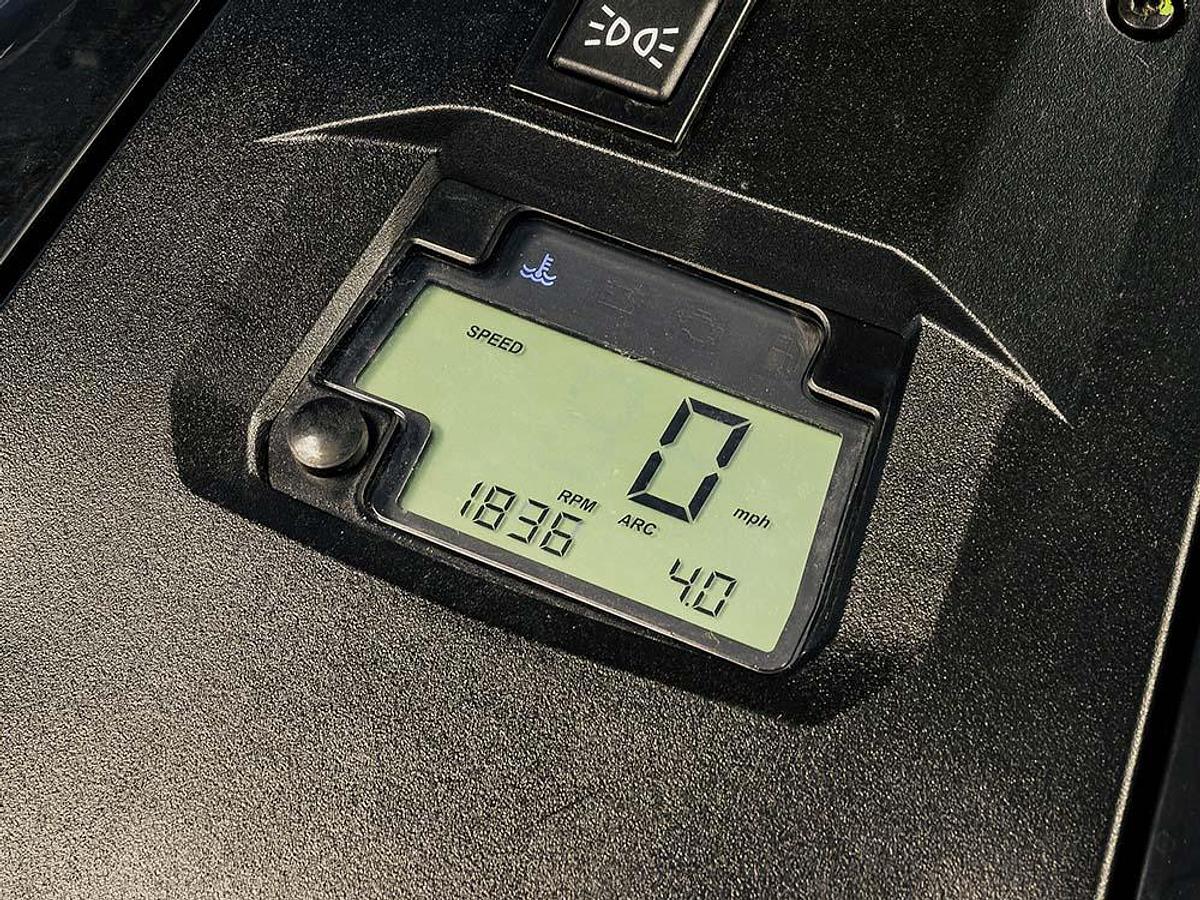

Type of GaugeDigital
SpeedometerDigital
TachometerNA
OdometerDigital
FuelLow Fuel Icon
OilNA
CoolantNA
ClockNA
Battery VoltageNA
AltimeterNA
HoursNA
ColorBlack
Heat ExchangerNA
StarterElectric
HandlebarsAluminum, Width: 780 mm (30.30 in) Diameter: 35 MM (1.37 in) Rise: 15 MM (0.59 in)
LightingLED
SeatingNA
Standard AccessoriesNA
WindshieldNA
