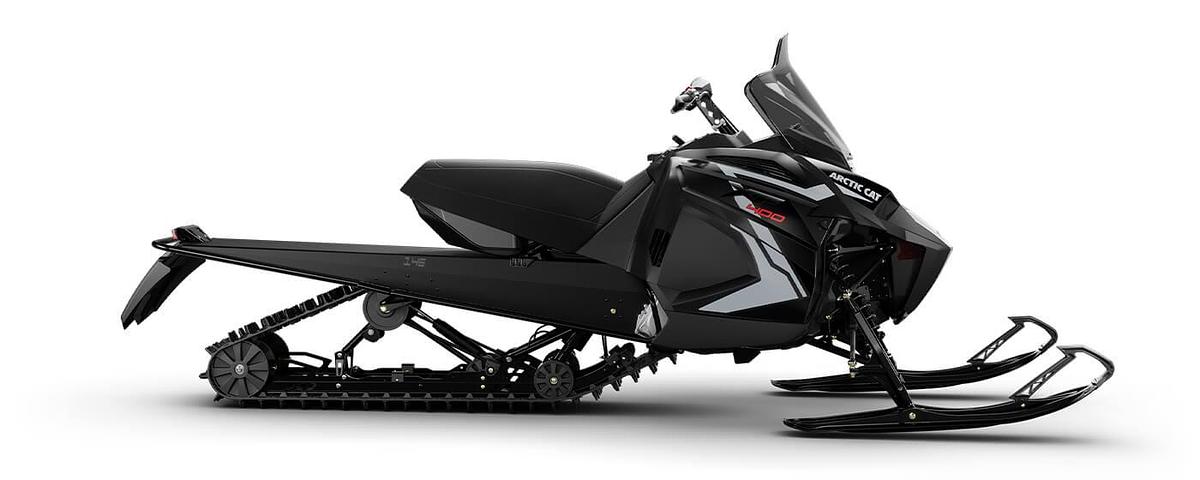

Arctic Cat XF 400

Specifications

ManufacturerArctic Cat
ModelXF 400
ConditionNew

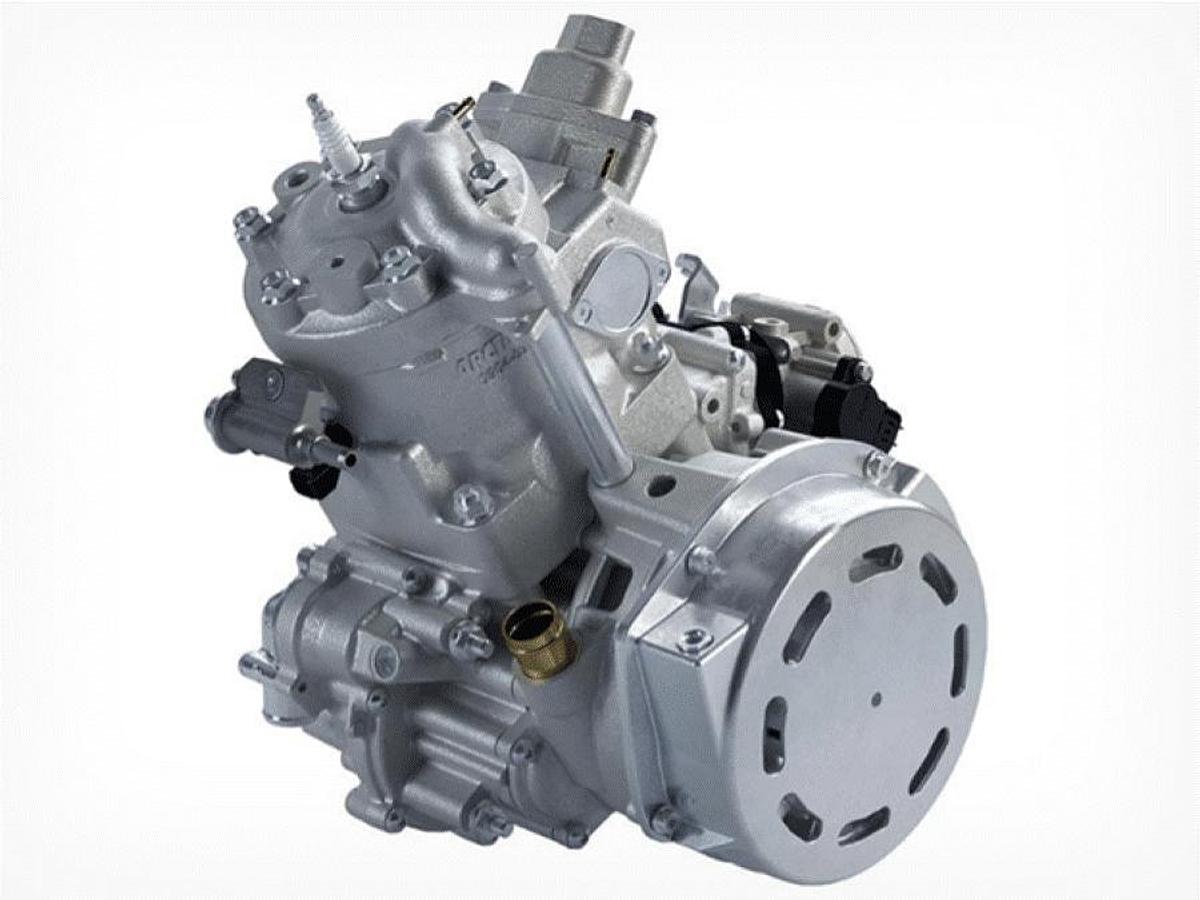

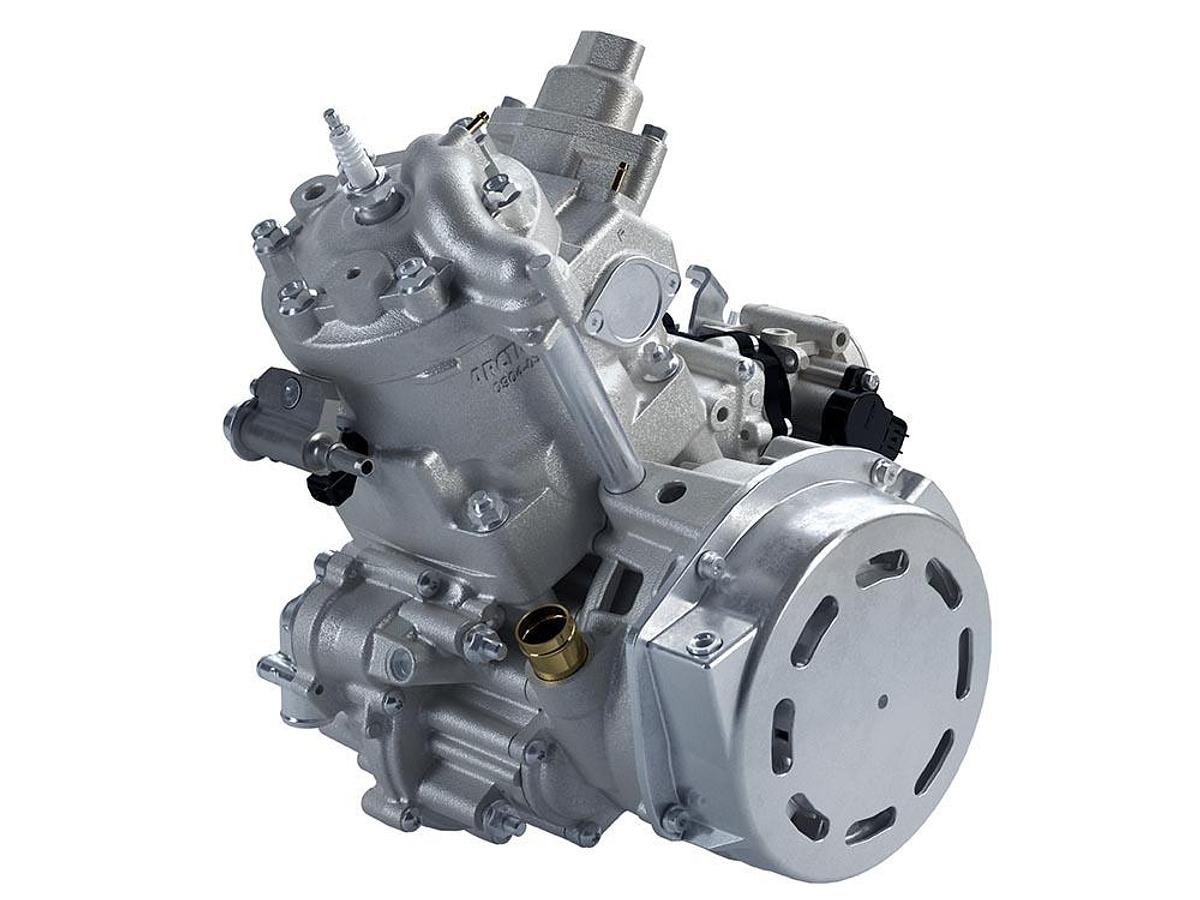

Engine Type400, 2-Stroke
Displacement397cc
CoolingLiquid
Cylinders1
Bore x Stroke85 x 70 mm
LubricationElectronic Injection
IgnitionDigitally Controlled CDI
Engine Stator Output270W @ 3000 RPM
Fuel DeliveryElectronic Fuel Injected (EFI)
ExhaustAPV w/ Tuned Pipe, Pipe Sensor, Manifold & Stainless Steel Muffler
Fuel Capacity11.7 gal
Oil System Capacity3.25 qt
Coolant System Capacity5.0 qt
Minimum Octane91
Drive ClutchCVTech Trailbloc
Driven ClutchCV Tech Invance
Drive SystemArctic Drive System
BrakesStealth Hydraulic Master Cylinder
Clutch Calibration0-5,000 ft
Gearing19/50
Chain Pitch90
Track Drive Sprocket8 Tooth, 2.86 Pitch, Involute

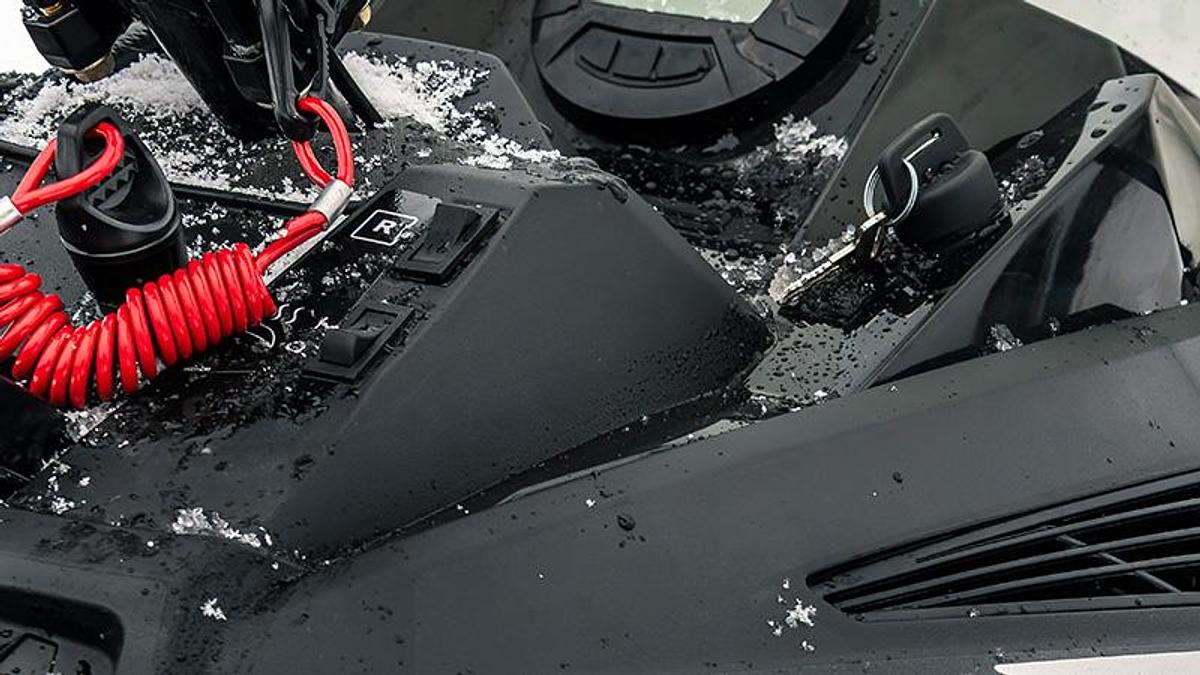

ReversePush-Button Engine

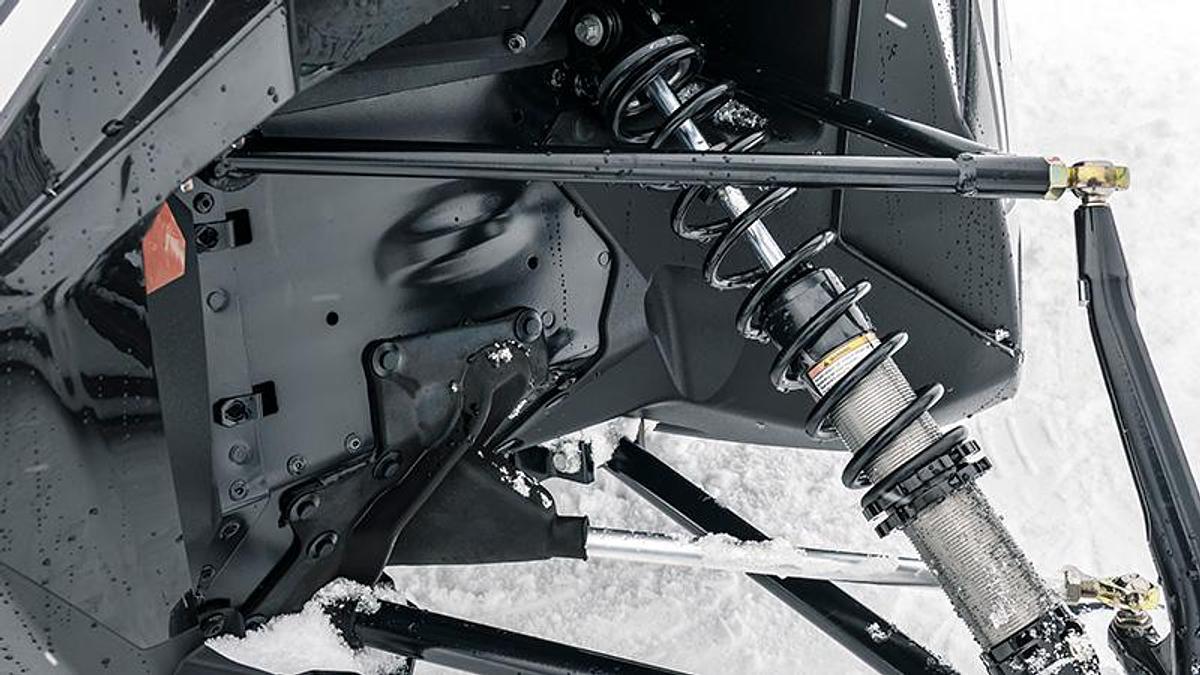

Front SuspensionArctic Mountain Suspension (AMS)
Ski ShocksHydraulic Twin Tube
Front Travel 7.2 in

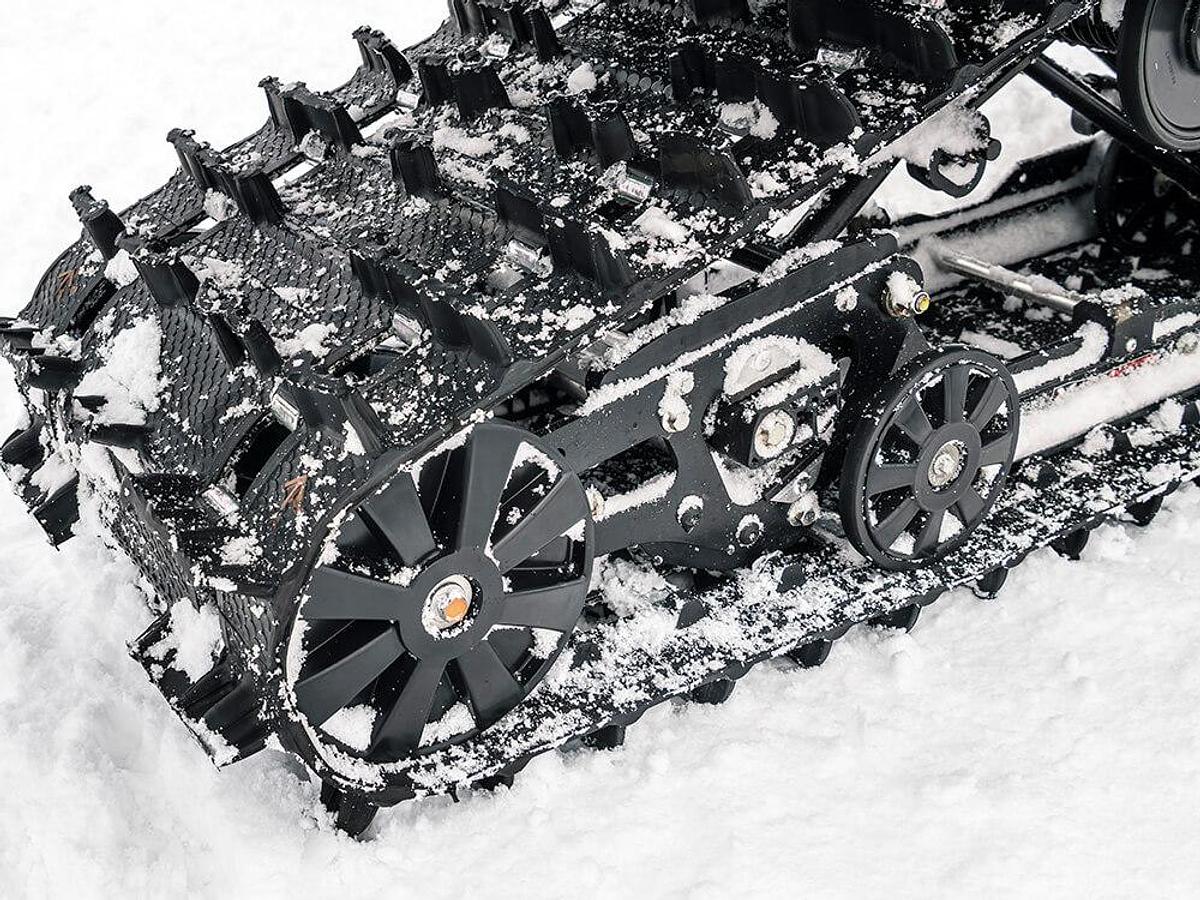

Rear SuspensionXTRA-ACTION with dual shocks & adjustable torsion springs
Front Track ShockHydraulic Twin Tube
Rear Track ShockHydraulic Twin Tube
Rear Travel12.5 in
Overall Chassis Length128 in
Overall Chassis Width44-45 in
Overall Chassis Height51 in

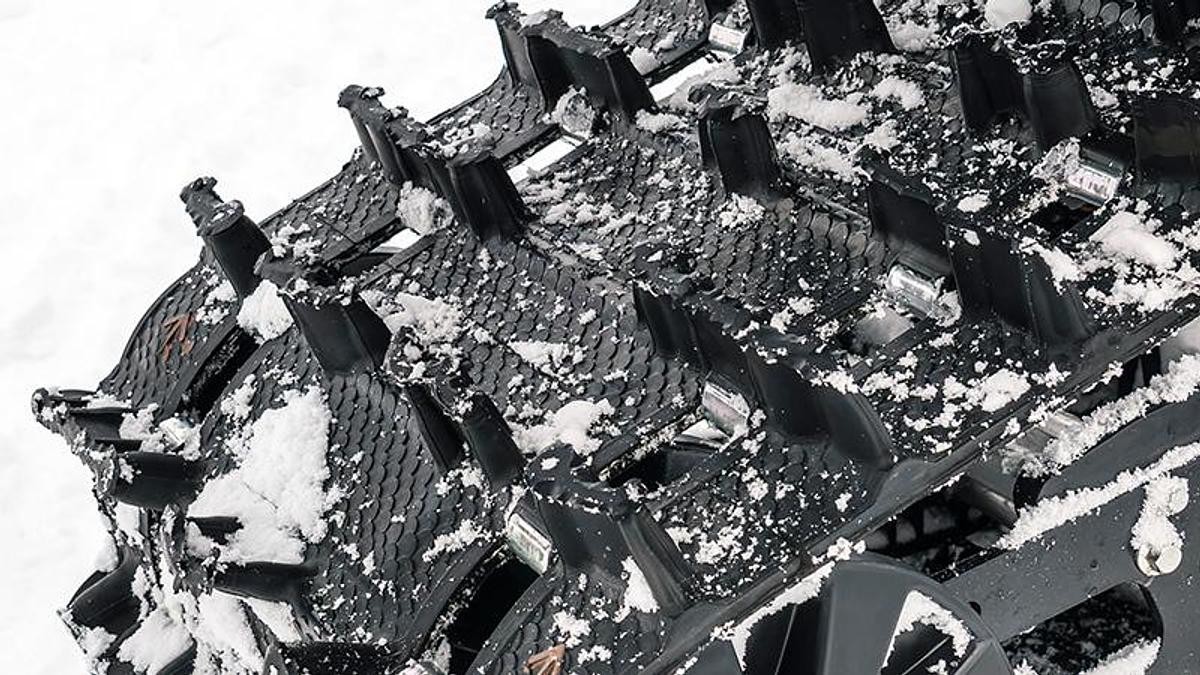

Track TypeCobra
Track Width15 in
Track Length146 in
Lug1.60 in
Pitch2.86 in
Ski Stance37.5-38.5 in - Adjustable
Ski Type/WidthTrail - 6 in
Runner TypeSingle Runner

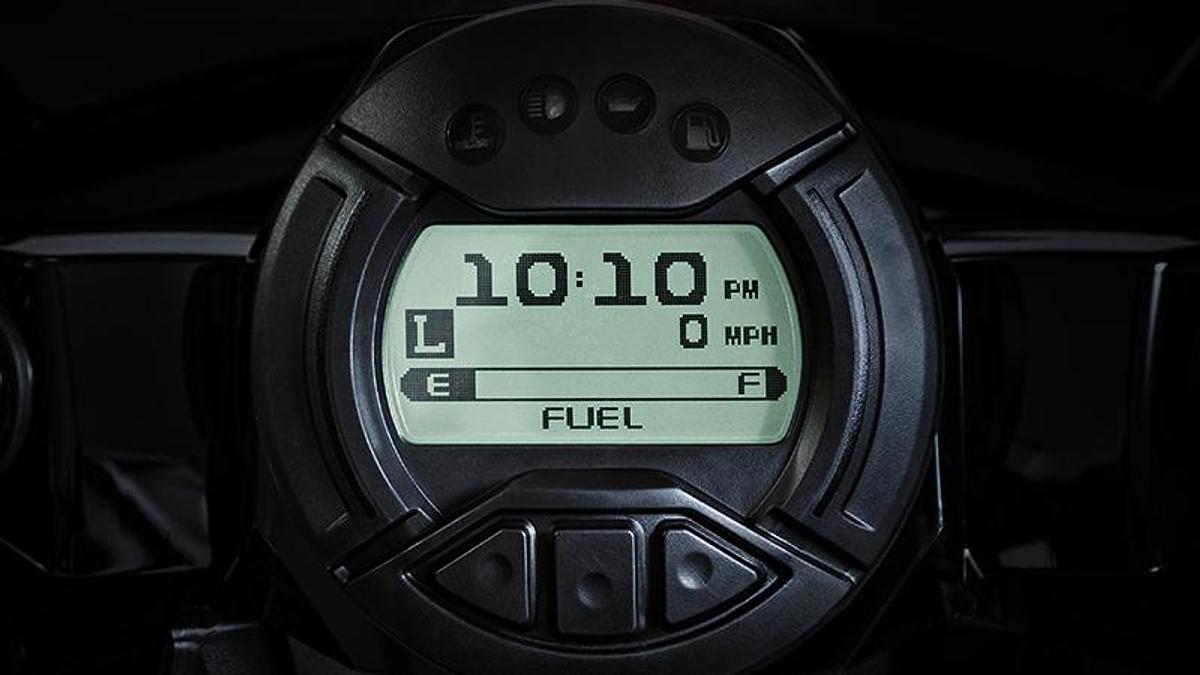

Type of GaugeStandard
SpeedometerDigital
TachometerDigital
OdometerDigital
FuelDigital
OilIndicator Light
CoolantIndicator Light
HoursDigital
ColorBlack
Heat ExchangerFront/Long Tunnel
StarterTurnkey Electric Start
HandlebarsHooked
LightingHalogen 1-Bulb
SeatingMountain
Standard AccessoriesHand & Thumb Warmers, Standard Brake Disc, Standard Steering, Tether Switch
Windshield15.5-in High Height
