Arctic Cat Thundercat 146
Specifications
| Manufacturer | Arctic Cat |
| Model | Thundercat 146 |
| Condition | New |
| Engine Type | 9000 Turbo, 4-Stroke |
| Displacement | 998cc |
| Cooling | Liquid |
| Cylinders | 3-Turbocharged |
| Bore x Stroke | 80 x 66.2 mm |
| Lubrication | Dry Sump |
| Ignition | Digital Controlled Coil Induction |
| Engine Stator Output | 545W @ 5000 RPM |
| Fuel Delivery | Electronic Fuel Injected (EFI) |
| Exhaust | Turbocharger w/ Stainless Steel Muffler |
| Fuel Capacity | 9.9 gal |
| Oil System Capacity | 3.8 qt |
| Coolant System Capacity | 6.4 qt |
| Minimum Octane | 91 |
| Drive Clutch | ADAPT |
| Driven Clutch | ADAPT |
| Drive System | Arctic Drive System |
| Brakes | Stealth Hydraulic Master Cylinder |
| Clutch Calibration | 0-10,000 ft |
| Gearing | 22/48 |
| Chain Pitch | 90 |
| Track Drive Sprocket | 9 Tooth, 2.86 Pitch, Exvolute |
| Reverse | Push-Button Engine |

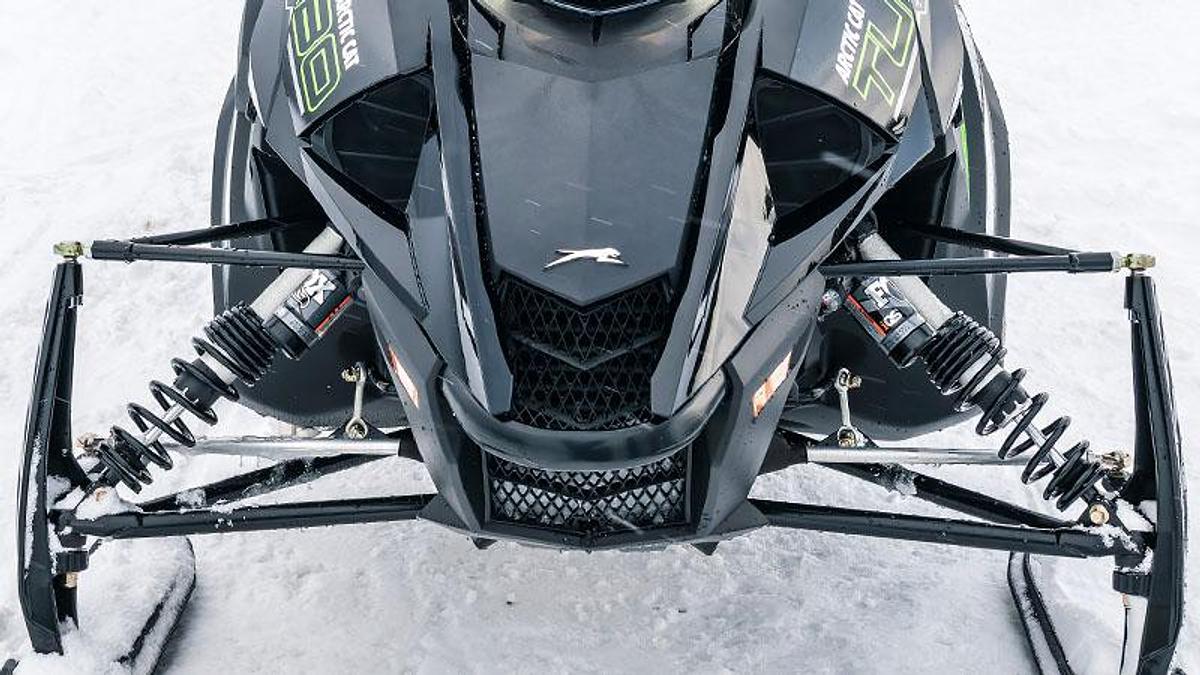

| Front Suspension | ARS II w/ ATAC |

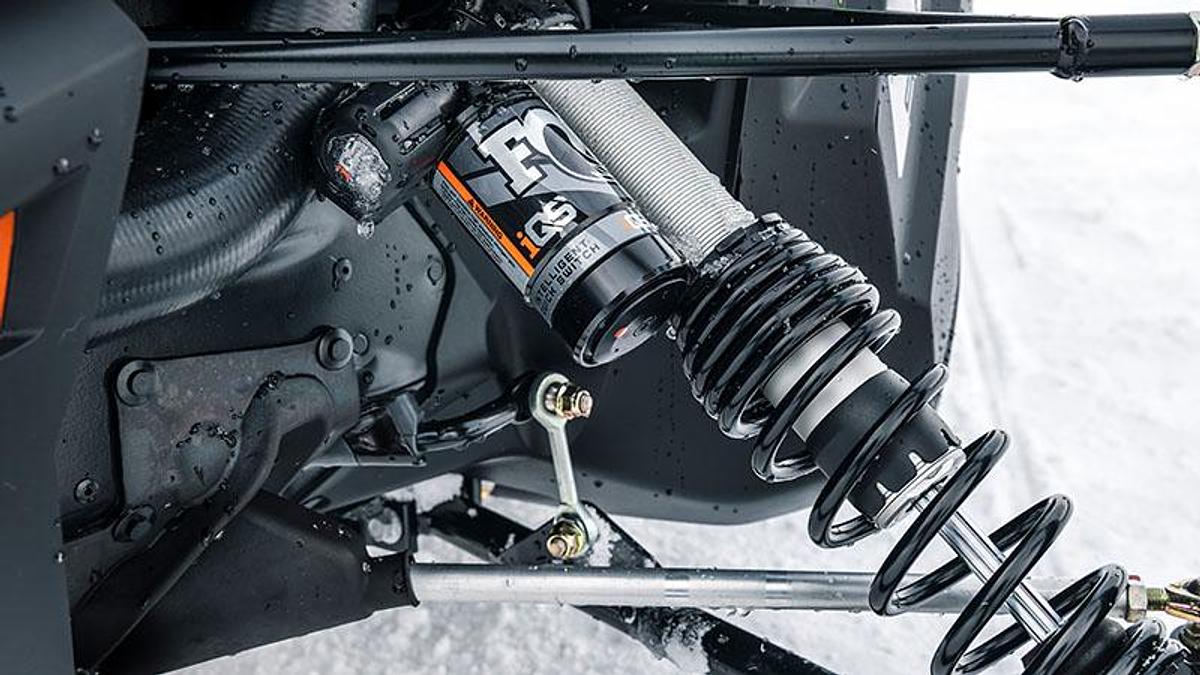

| Ski Shocks | FOX 1.5 iQS |
| Sway Bar | Standard |
| Front Travel | 9 in |

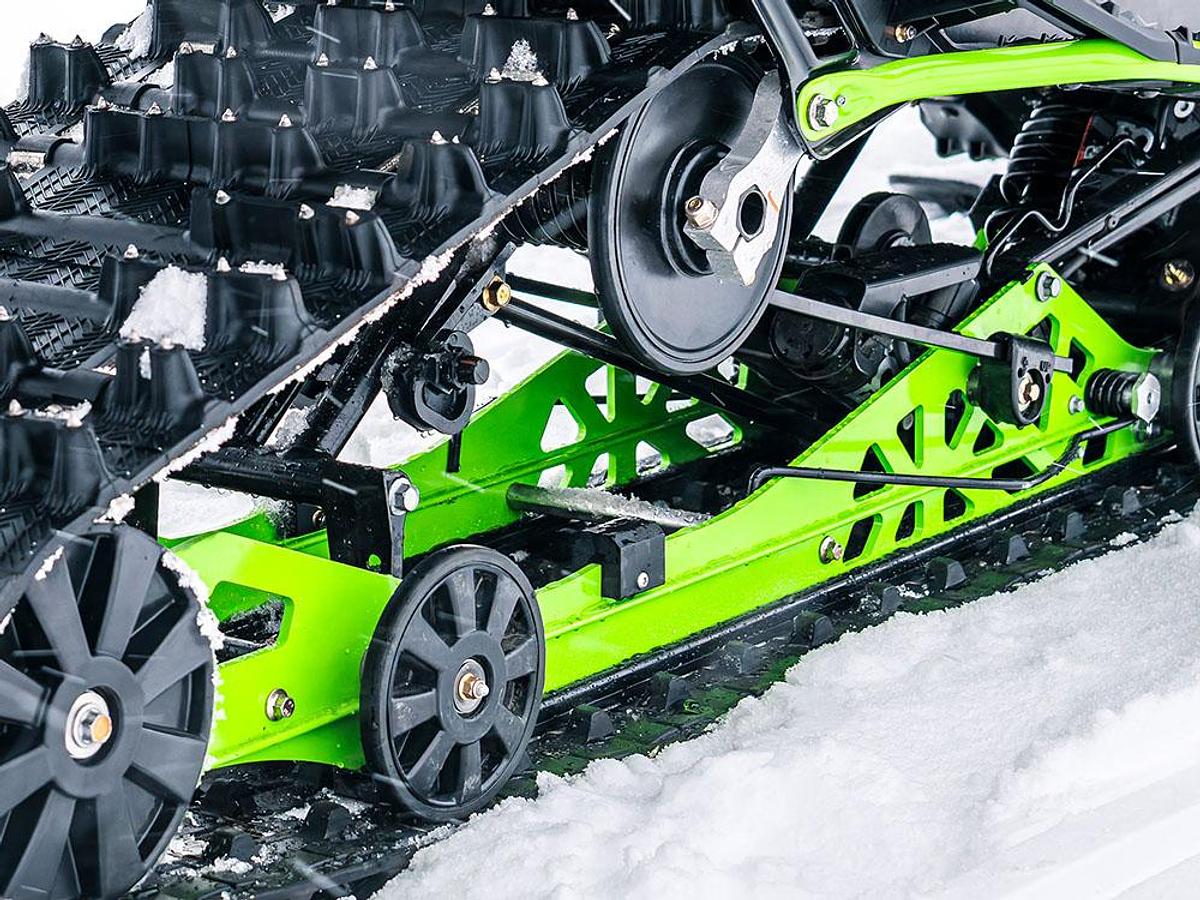

| Rear Suspension | CROSS-ACTION II w/ 3 Wheel Rear Axle Assembly, Torque-Sensing Link Rear Arm, Adjustable Torsion Springs & Elevated Rear Wheel |
| Front Track Shock | Arctic Cat IFP 1.5 |
| Rear Track Shock | FOX 2.0 iQS |
| Rear Travel | 13.5 in |
| Overall Chassis Length | 132 in |
| Overall Chassis Width | 48-49 in |
| Overall Chassis Height | 48 in |

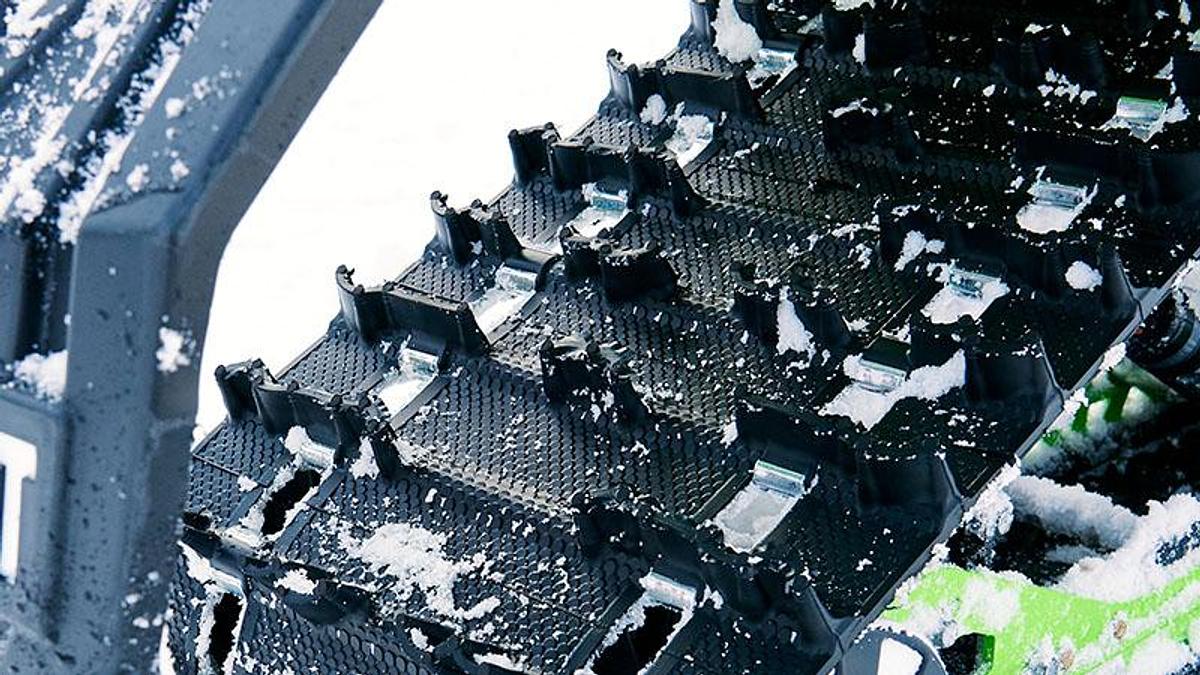

| Track Type | Cobra |
| Track Width | 15 in |
| Track Length | 146 in |
| Lug | 1.35 in |
| Pitch | 2.86 in |
| Ski Stance | 42-43 in - Adjustable |
| Ski Type/Width | Trail - 6 in |
| Runner Type | Long Dual Runner 4-Bolt With Carbide |
| Type of Gauge | G8 (CAN w/o Group Ride) |
| Speedometer | Digital |
| Tachometer | Digital |
| Odometer | Digital |
| Fuel | Digital |
| Oil | Digital |
| Coolant | LCD Icon |
| Clock | Digital |
| Battery Voltage | Digital |
| Altimeter | Digital |
| Hours | Digital |
| Color | Black & Green/Black & Red |
| Heat Exchanger | Front/Long Tunnel |
| Starter | Push-Button Electric Start |
| Handlebars | Hooked |
| Lighting | LED w/ Accent Light |
| Seating | Trail 4S |

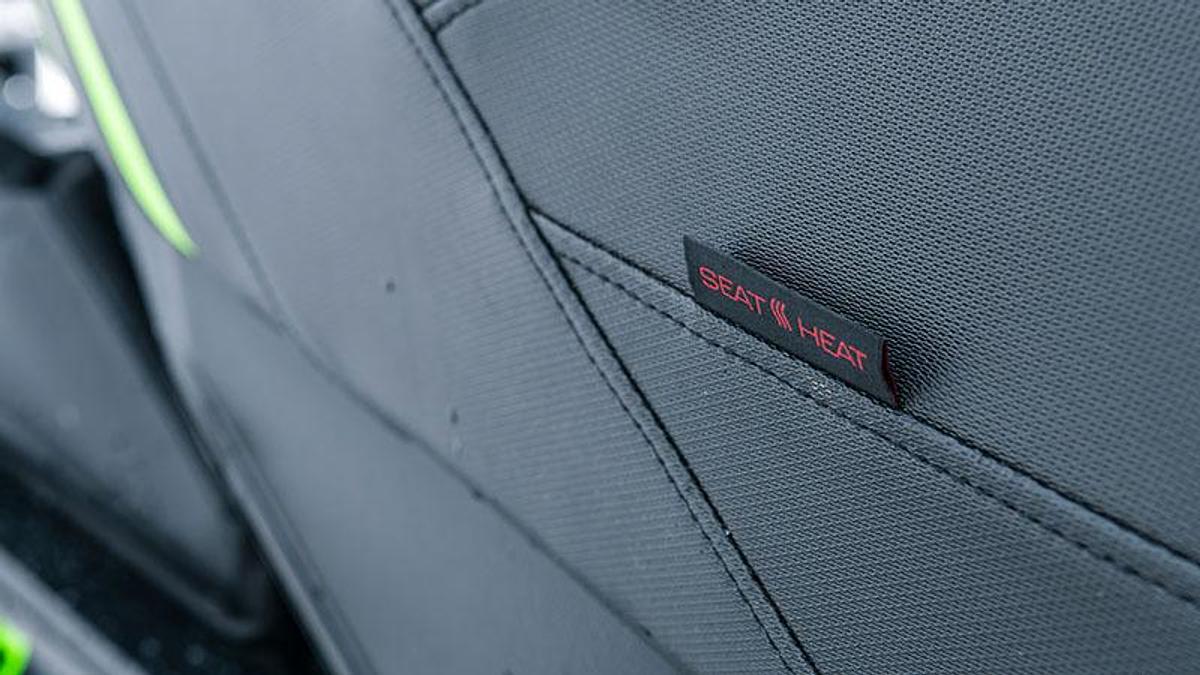

| Standard Accessories | 12V Outlet, Sport Front Bumper, Goggle Holder, Hand & Thumb Warmers, Heated Driver Seat, Ice Scratchers, Rear Storage, Standard Brake Disc, EPS Steering, Tether Switch, Mid Tunnel Bag, Tunnel Flare, Visor Plug-In |
| Windshield | 11 in Mid Height |
$23,599
