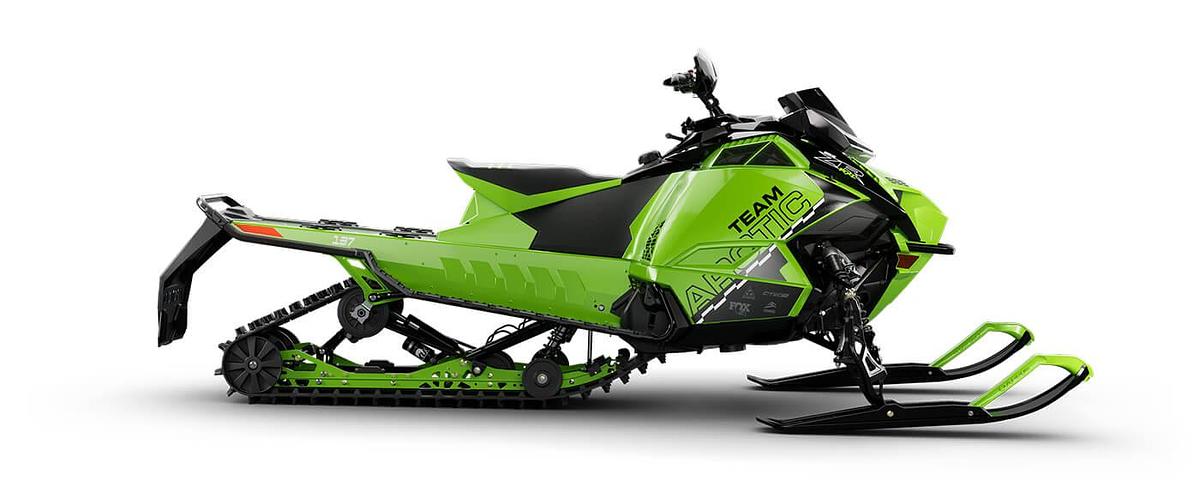

Arctic Cat ZR 858 R-XC EPS

Specifications

ManufacturerArctic Cat
ModelZR 858 R-XC EPS
ConditionNew
Engine Type858, 2-Stroke
Displacement858cc
CoolingLiquid
Cylinders2
Bore x Stroke85 x 75.6 mm
LubricationElectronic Injection
IgnitionDigitally Controlled CDI
Engine Stator Output270W @ 3000 RPM
Fuel DeliveryNext Gen. C-TEC2
ExhaustAPV IV w/ Full Stainless Steel Exhaust & EGT Sensors
Fuel Capacity10.4 gal
Oil System Capacity3 qt
Coolant System Capacity5.4 qt
Minimum Octane91
Drive ClutchADAPT
Driven ClutchADAPT
Drive SystemAC Trail Belt Drive
BrakesStealth Hydraulic Master Cylinder w/ Race Caliper
Clutch Calibration0-5,000 ft
Gearing30/58
Chain PitchBelt
Track Drive Sprocket9 Tooth, 2.86 Pitch, Exvolute
ReversePush-Button Engine
Front SuspensionAWS 42
Ski ShocksFox QS3R
Sway BarStandard
Front Travel 8.2 in
Rear SuspensionR-XC SLIDE-ACTION w/ 4 Wheel Rear Axle Assembly, Coupling Blocks, Torque-Sensing Link Rear Arm & Adjustable Torsion Springs
Front Track ShockFOX 1.5 QS3
Rear Track ShockFOX 2.0 ZERO QS3R
Rear Travel13.5 in
Overall Chassis Length126 in
Overall Chassis Width48-49 in
Overall Chassis Height48 in
Track TypeCobra
Track Width15 in
Track Length137 in
Lug1.35 in
Pitch2.86 in
Ski Stance41.5-42.5 in - Adjustable
Ski Type/WidthC&A Pro XPT
Runner TypeWoody's Dooly 6 in
Type of GaugeG8 (CAN w/o Group Ride)
SpeedometerDigital
TachometerDigital
OdometerDigital
FuelDigital
OilIndicator Light
CoolantDigital/Indicator Light
ClockDigital
Battery VoltageDigital
AltimeterDigital
HoursDigital
ColorRace Green
Heat ExchangerFront/Long Tunnel
StarterPush-Button Electric Start
HandlebarsHooked
LightingLED
SeatingTrail
Standard Accessories12V Outlet, Sport Front Bumper, Integrated Goggle Holder, ATACH mounting, Handguards, Hand & Thumb Warmers, Race Brake Disc, EPS Steering, Tether Switch, Visor Plug-In
Windshield5.5 in Low Height
