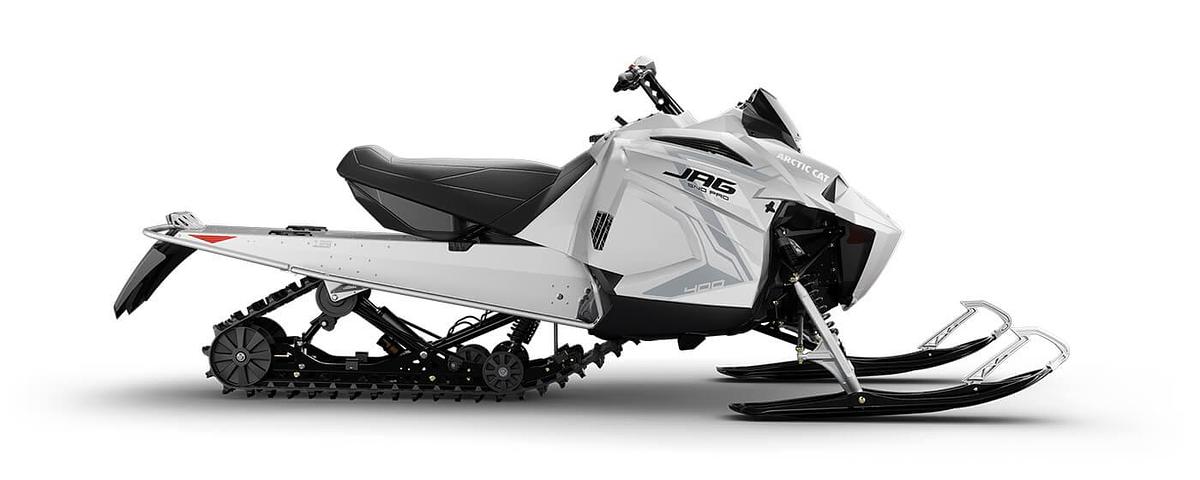

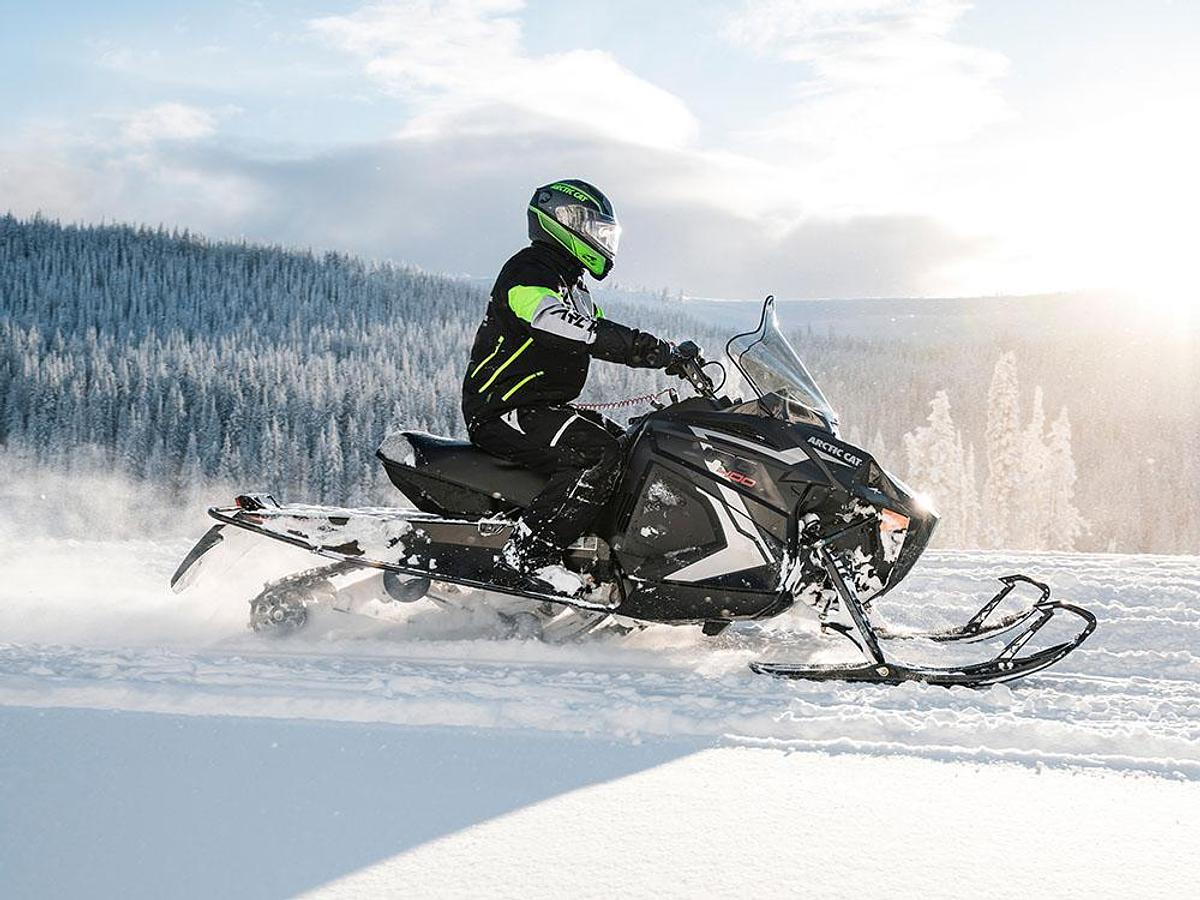

Arctic Cat Jag 400 Sno Pro SG
Specifications
| Manufacturer | Arctic Cat |
| Model | Jag 400 Sno Pro SG |
| Condition | New |

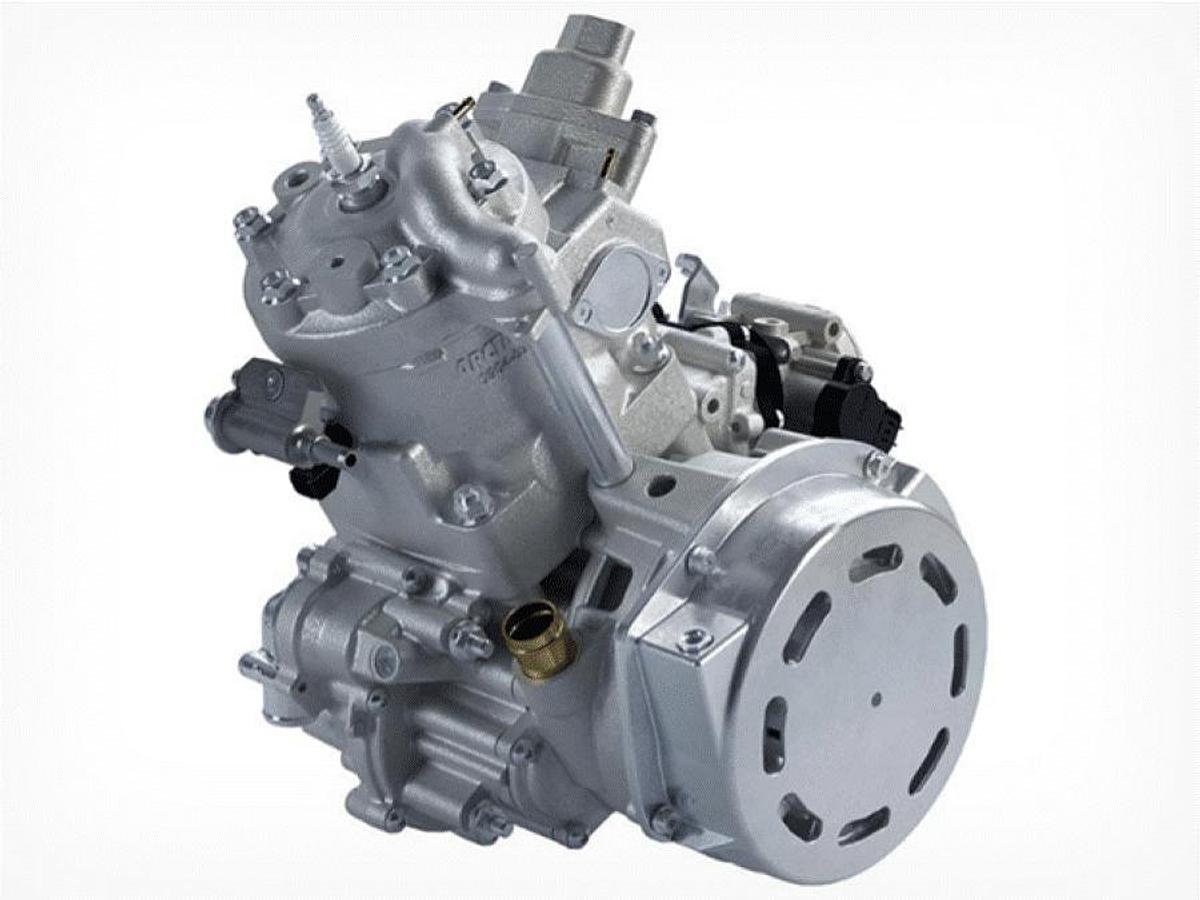

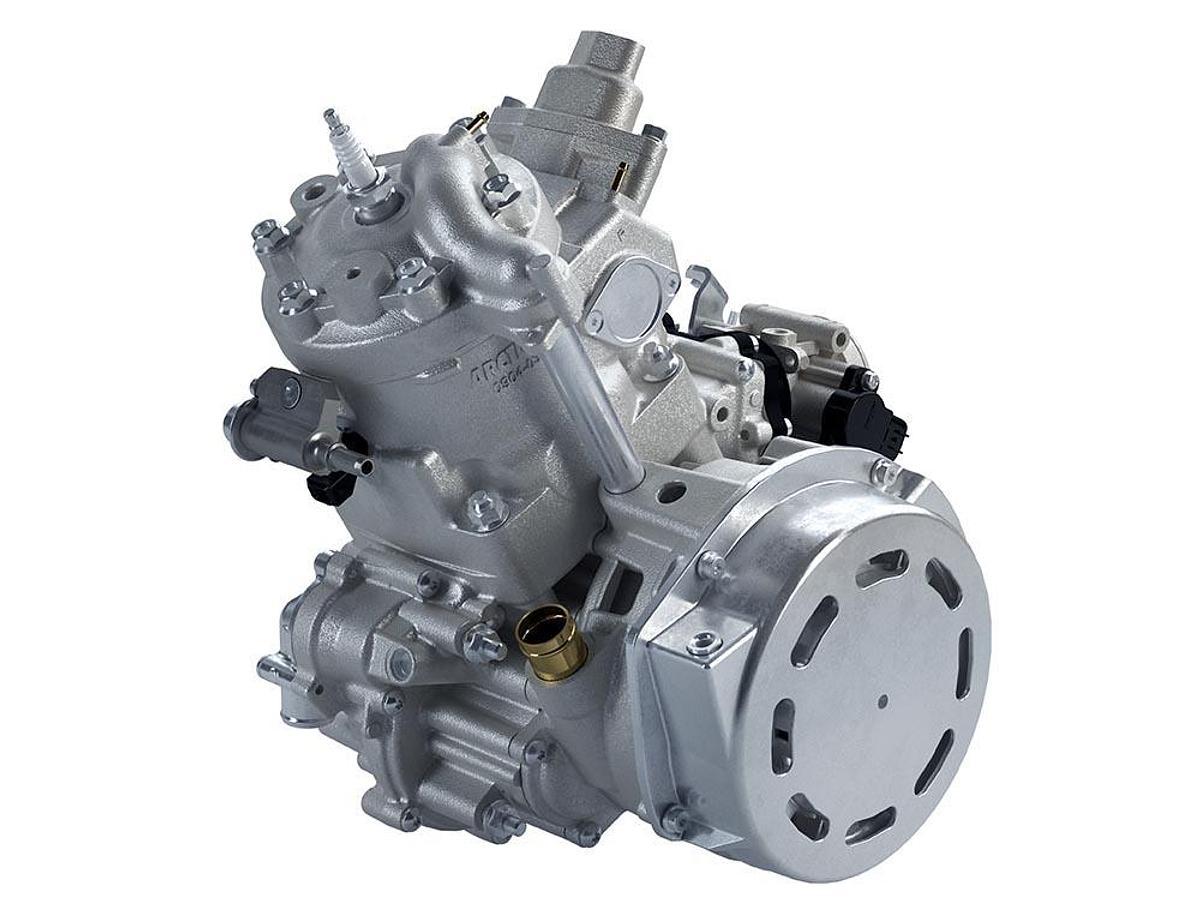

| Engine Type | 400, 2-Stroke |
| Displacement | 397cc |
| Cooling | Liquid |
| Cylinders | 1 |
| Bore x Stroke | 85 x 70 mm |
| Lubrication | Electronic Injection |
| Ignition | Digitally Controlled CDI |
| Engine Stator Output | 270W @ 3000 RPM |
| Fuel Delivery | Electronic Fuel Injected (EFI) |
| Exhaust | APV with Tuned Pipe, Pipe Sensor, Manifold & Stainless Steel Muffler |
| Fuel Capacity | 11.7 gal |
| Oil System Capacity | 3.25 qt |
| Coolant System Capacity | 4.6 qt |
| Minimum Octane | 91 |
| Drive Clutch | CVTech Trailbloc |
| Driven Clutch | CVTech Invance |
| Drive System | Arctic Drive System |
| Brakes | Stealth Hydraulic Master Cylinder |
| Clutch Calibration | 0-5,000 ft |
| Gearing | 19/50 |
| Chain Pitch | 90 |
| Track Drive Sprocket | 8 Tooth, 2.86 Pitch, Involute |
| Reverse | Push-Button Engine |
| Front Suspension | Arctic Mountain Suspension (AMS) |

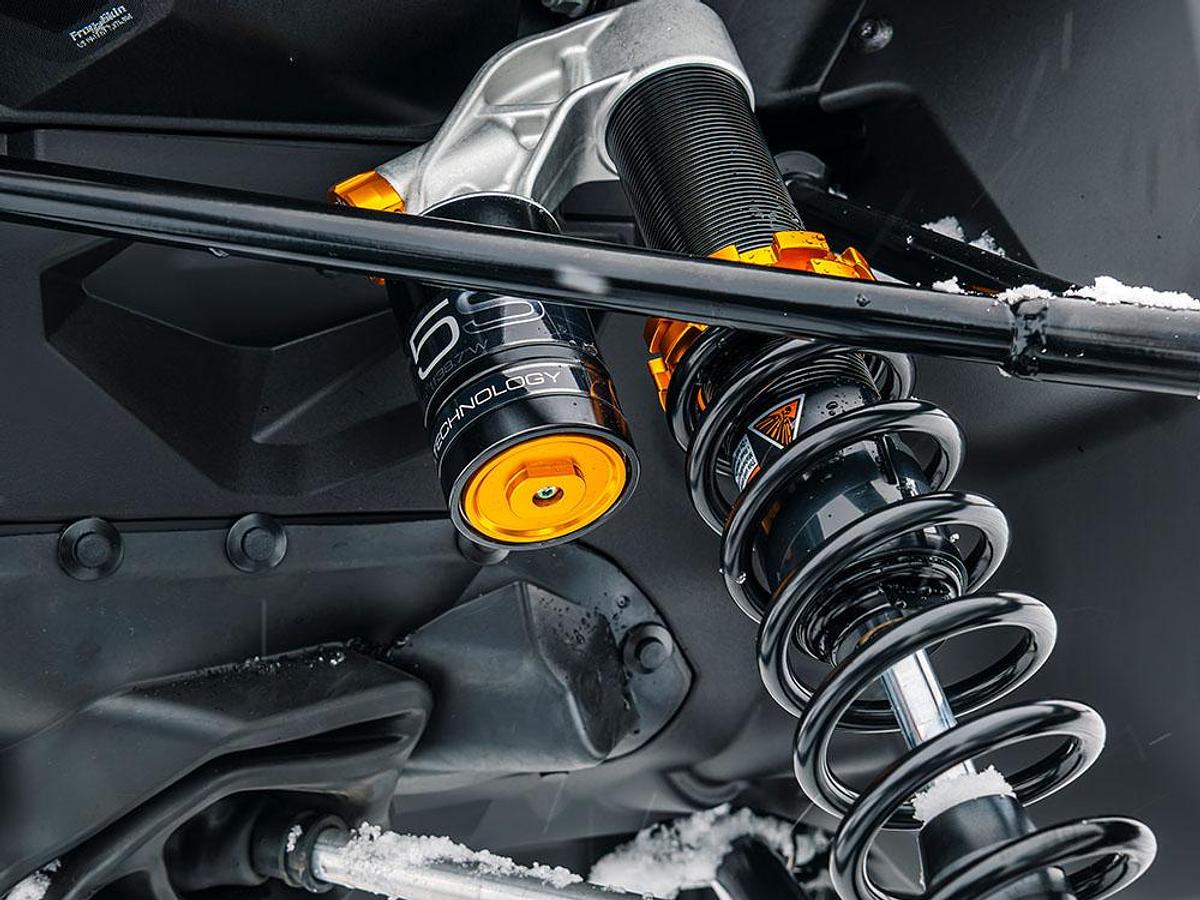

| Ski Shocks | AC5S |
| Sway Bar | Standard |
| Front Travel | 7.2 in |

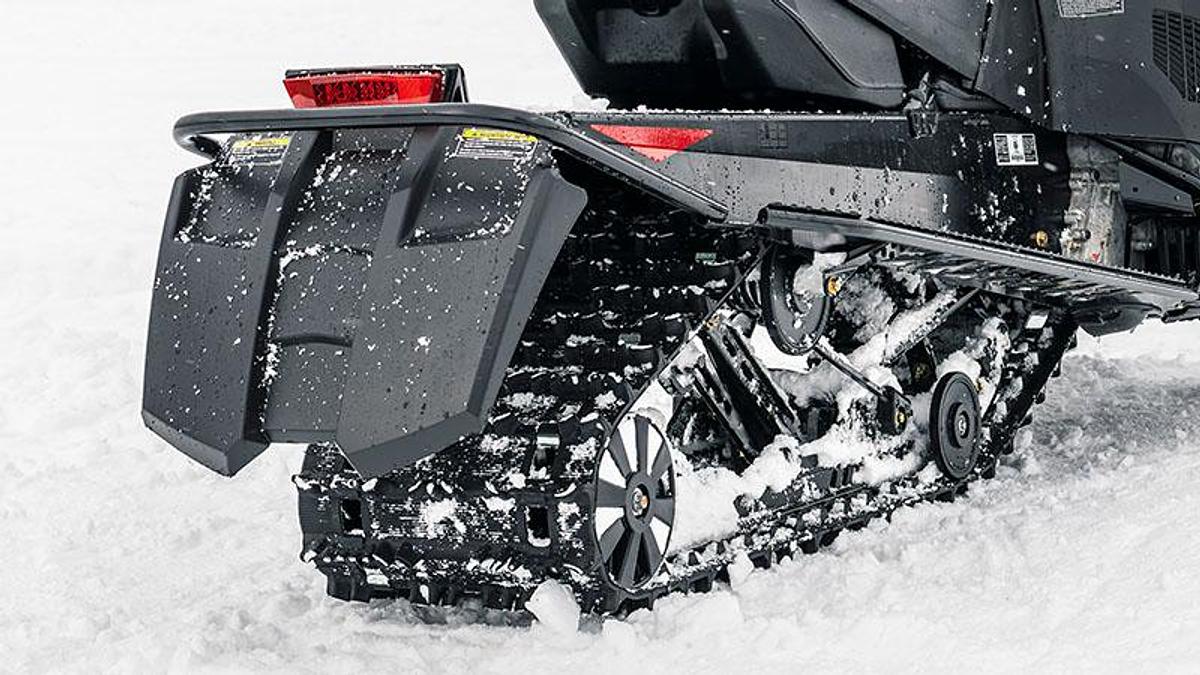

| Rear Suspension | SLIDE-ACTION with 3 wheel rear axle assembly and adjustable torsion springs |
| Front Track Shock | AC5S |
| Rear Track Shock | AC5S |
| Rear Travel | 13.5 |
| Overall Chassis Length | 124 in |
| Overall Chassis Width | 46-47 in |
| Overall Chassis Height | 45 in |

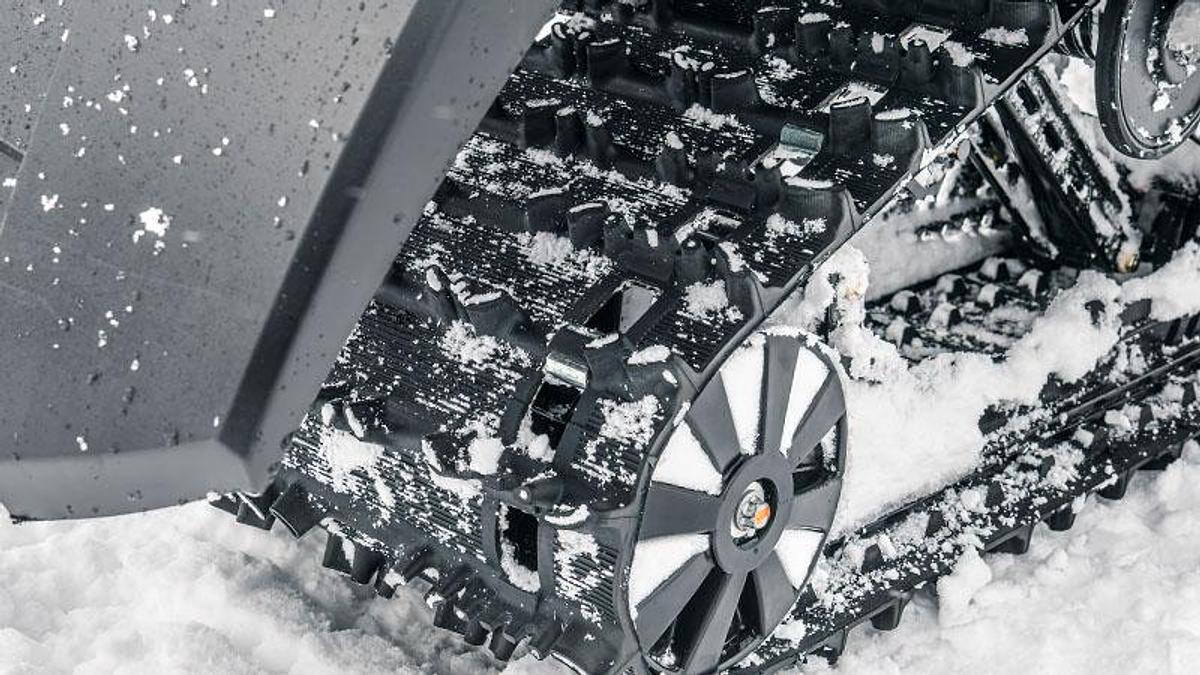

| Track Type | Ripsaw |
| Track Width | 15 in |
| Track Length | 129 in |
| Lug | 1.25 in |
| Pitch | 2.86 in |
| Ski Stance | 39.5-40.5 in - Adjustable |
| Ski Type/Width | Trail - 6 in |
| Runner Type | Twin Split |

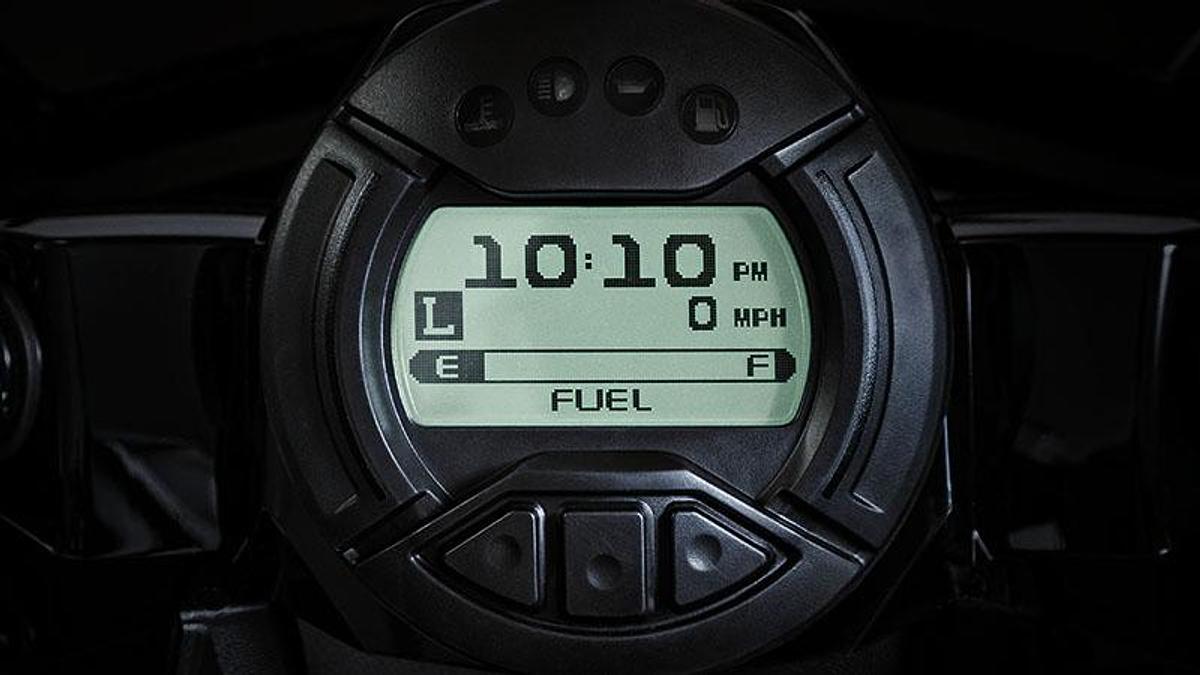

| Type of Gauge | Standard |
| Speedometer | Digital |
| Tachometer | Digital |
| Odometer | Digital |
| Fuel | Digital |
| Oil | Indicator Light |
| Coolant | Indicator Light |
| Hours | Digital |
| Color | White |
| Heat Exchanger | Front Long Tunnel |

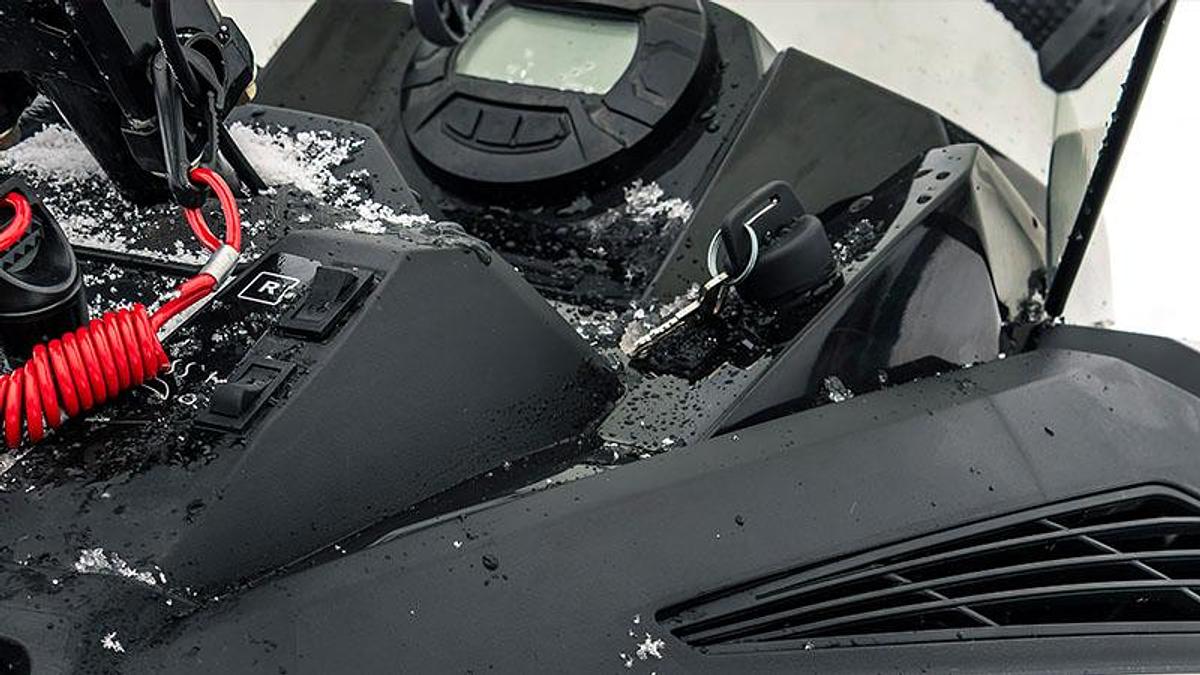

| Starter | Turnkey Electric Start |
| Handlebars | Hooked |
| Lighting | Halogen 1-Bulb |
| Seating | Mid-Size |
| Standard Accessories | Hand & Thumb Warmers, Standard Brake Disc, Standard Steering, Tether Switch |

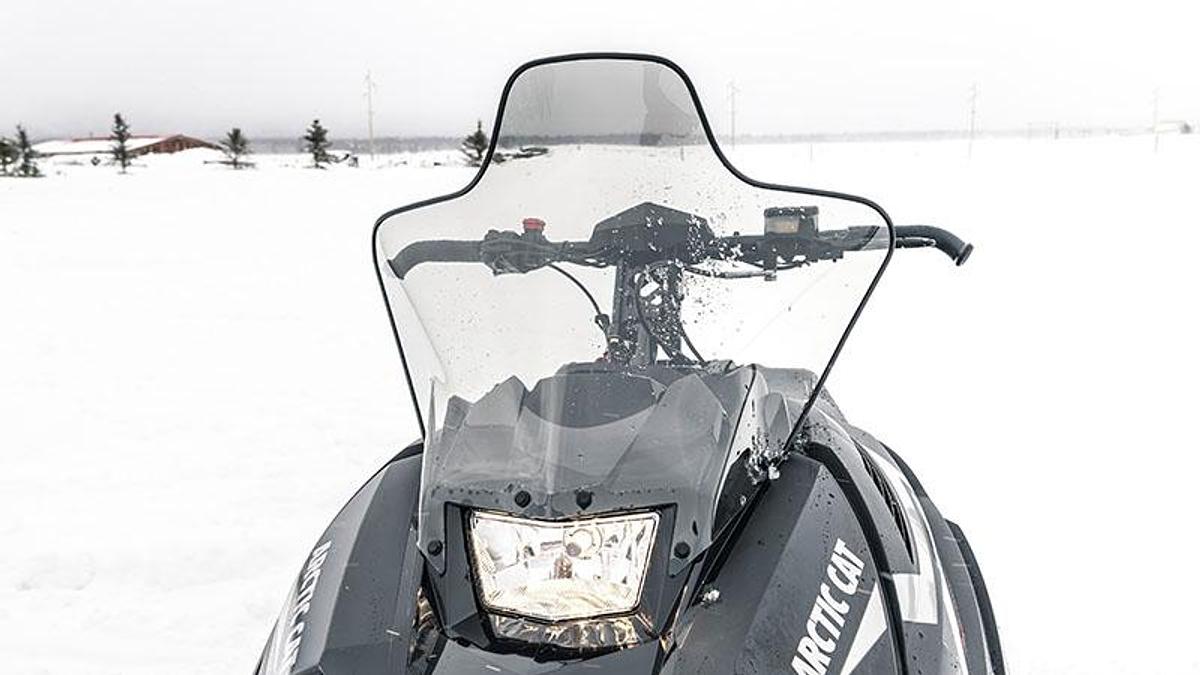

| Windshield | 4-inch Low |
$10,099
